Artigo A1300

Model Name ARTiGO A1300
Processor 1.0GHz VIA QuadCore E-Series
Chipset VIA VX11PH Media System Processor
BIOS AMI Aptio UEFI BIOS, 32Mbit Flash memory
System Power Management Timer Power-On
ACPI 3.0 compliant
System Memory 1 DDR3 1066/1333 SODIMM socket
Up to 8GB memory size
Storage Supports 1 2.5” SATA SSD/HDD
Supports 1 mSATA SSD
Graphics Integrated Chrome® 645/640 DX11 3D/2D graphics with MPEG-2, WMV9, VC-1 and H.264 video decoding acceleration
Audio VIA VT2021 High Definition Audio Codec
Display I/O 2 HDMI ports supporting resolutions up to 1920 x 1080 pixels
Dual independent HDMI displays at different resolutions, pixel depths, and refresh rates
USB 2 USB 3.0 ports and 2 USB 2.0 ports
LAN Realtek RTL8111G Gigabit Ethernet controller
Supports Wake-On-LAN and Boot from LAN (PXE)
COM Fintek F71869 LPC I/O controller
Expansion I/O 1 Mini-card slot (PCIe + USB 2.0)
1 SIM card slot
Left Panel I/O 2 USB 2.0 ports
1 COM port for RS-232/422/485 (powered by selectable 5V/12V)
1 DIO port for 8-bit GPIO
1 Blue LED for 3G
1 Blue LED for USB Wi-Fi

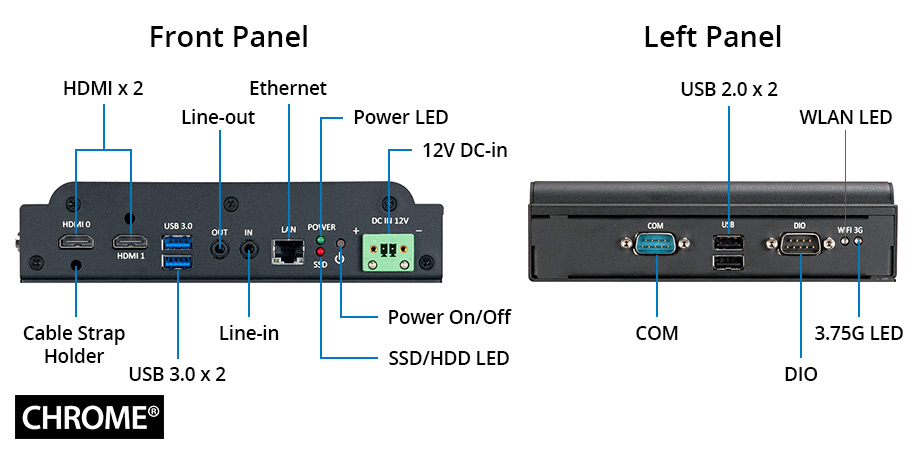

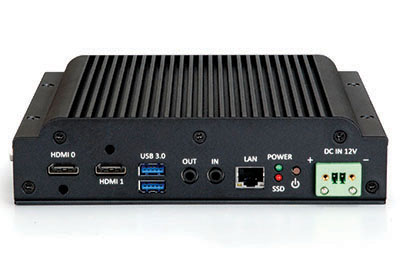

Front Panel I/O 2 USB 3.0 ports
2 HDMI ports
1 Gigabit Ethernet port
2 Audio jacks: Line-in and Line-out
1 Power on/off button
1 Red LED for SSD activity
1 Green LED for power status
1 2-pole Phoenix DC jack
Rear Panel I/O 1 Antenna hole for 3G
1 Antenna hole for Wi-Fi
Watch Dog Timer System reset; programmable 1~255 sec
Power Supply 12V DC-in (typical: 28W)
Operating System Windows® 8/7, WES7, Linux
Mechanical Construction Fanless aluminum alloy
Mounting VESA mount
Dimensions 185mm(W) x 44.4mm(H) x 162mm(D) (7.28" x 1.75" x 6.38")
Weight 2.0kg (4.4lbs) (without HDD)
Operating Temperature 0°C ~ 45 °C (SSD & mSATA)
0°C ~ 40 °C (HDD)
Storage Temperature -10°C ~ 60 °C
Operating Humidity 0% ~ 90% (non-condensing)
Vibration Loading During Operation With 2.5” SSD, IEC 60068-2-64 (5Grms, random, 5 ~ 500Hz, 1hr/axis)
Shock During Operation With 2.5” SSD, IEC 60068-2-27 (50G, half size, 11ms duration)
Compliance CE / FCC
