image for display purpose only
  • The VIA ARTiGO A1250 is an ultra slim system for those seeking a compact solution without sacrificing computing power. Taking inspiration from the Pico-ITX form factor, the VIA ARTiGO A1250 offers an impressive range of features including a full 64-bit quad core processor, 3D and HD video support, dual independent display support, up to 8GB of DDR3 system memory and a rich I/O set with USB 3.0, in a chassis that is a mere 3cm in height.

    VIA ARTiGO A1250: Great Things Come in Small Packages

    The VIA ARTiGO A1250 is the slimmest full featured quad core system on the market today with an ultra low-profile design measuring a mere 17.7cm × 12.5cm × 3.0cm (W × D × H), a full ten percent smaller than the VIA ARTiGO A1150 series. This slim systems fits easily into any environment, whether it is behind a monitor or on the wall with a 10 × 10 cm VESA mount or placed alongside other home media devices. It is suitable for a myriad of applications in the home or office, including home server, home automation, hotel automation, media streaming, digital signage, surveillance as well as for medical and healthcare applications. For system developers, VIA offers third party software security through our unique hardware/software design.

    A power efficient 1.0GHz VIA QuadCore E-Series processor is combined with the latest highly integrated all-in-one VIA VX11H MSP which features the integrated VIA Chromotion 5.0 video processor with DX11 support for richer textures and 3D stereoscopic display. The VIA ARTiGO A1250 delivers an exceptional multimedia experience with advanced filtering and cutting edge post-processing to perform ultra smooth decoding of H.264, MPEG-2, VC-1, and WMV9 for smooth playback of the most demanding multimedia titles at resolutions up to 1080p without incurring a heavy CPU load.

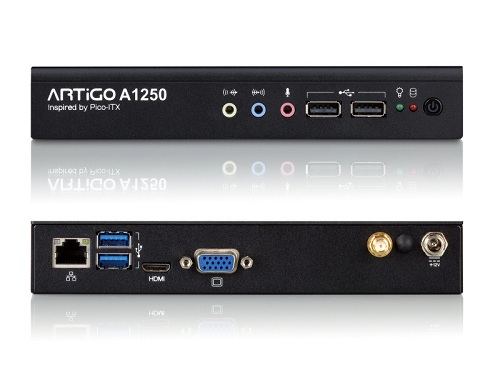

    The unique dual-sided I/O coastline interface includes one HDMI and one VGA display port, one GigaLAN Ethernet port, two USB 3.0 and two USB 2.0 ports, audio jacks (Line-in/out and mic-in) and 12V DC-in power

  • 1.0GHz VIA QuadCore E-Series processor
  • Up to 8GB of DDR3 1333 SDRAM SODIMM
  • Quiet, ultra slim profile design (only 3cm high)
  • Latest VIA VX11H media system processor with DirectX11 support
  • Flawless 3D and HD video performance up to 1080p
  • Supports one 2.5" SATA HDD or Flash SSD installation
  • HDMI & VGA display ports with dual independent display support
  • Rich I/O: HDMI, VGA, 2 USB 3.0, 2 USB 2.0, GigaLAN, audio-in/out/mic-in
  • Supports Microsoft Windows Embedded Standard 7 (WES), WES2009 & Linux based operating systems
  • Supports 100mm × 100mm VESA mount
  • DC jack strap holder
  • Average power consumption of 31.7W
  • S3TC™ texture compression technology support

Specifications
Computing System Processor 1.0GHz VIA QuadCore E (with fansink)
Front Side Bus 800MHz
L2 Cache 1MB
Chipset VIA VX11H Media System Processor
BIOS AMI BIOS, 32 Mbit EFI SPI Flash BIOS
System Power
Management
Timer power-on ACPI supported
Memory Technology 1 × DDR3 1333/1066 SODIMM socket
Max. Capacity Up to 8GB memory size
Graphic Controller Integrated Chrome™ 400 DX11 3D/2D graphics with MPEG-2, WMV9 & H.264 video decoding accelerator.
Display Memory Optimized Unified Memory Architecture (UMA), supports from 256MB to 1GB frame buffer using system memory.
CRT Interface 1 × Onboard VGA connector, supporting 10-bit true-color RAMDAC up to 350MHz pixel rate with gamma correction capability.
Pixel resolution support up to 2560 × 1600.
HDMI Interface 1 × Onboard Mini-HDMI connector
Dual Independent Displays Two independent display engines built-in VX11H chipset.
Support CRT+HDMI at different resolutions, pixel depths, and refresh rates with completely two different video contents.
Ethernet Controller VIA VT6130 Gigabit Ethernet controller for PCI Express interface
Interface Supports 1 × RJ45 connector for Gigabit connection
Supports wake-on-LAN and Boot from LAN (PXE)
HD Audio Controller VIA VT2021 High Definition Audio Codec
Interface Supports Line-in, Speaker-out, Mic-in
Serial USB 2 × USB ports
Storage Interface Signal Interface 1 × Onboard SATA II port, maximum data transfer rate up to 300MB/S
1 × onboard SATA power connector
2.5” Drive Bay 1 × 2.5” SATA disk drive bay
System Indicator Power Status LED 1 × Green color LED
HDD Activity LED 1 × Red color LED
Watch Dog Timer Output System reset
Interval Programmable 1~255 sec
Onboard I/O Coastline Connectors Rear Panel External I/O Connectors 1 × RJ45 connector, support Gigabit Ethernet connections
2 × USB 3.0 ports
1 × VGA port (DB-9)
1 × Mini-HDMI port
1 × 3.5 Ø DC Jack power input connector
1x Antenna hole reserve cutout to support WiFi networking
Front Panel External I/O Connectors 3 × 3.5Ø Audio jacks as Line-in, Line-out and Mic-in
2 × USB ports
1 × HDD & Power LED
1 × ATX power on/off switch
Power Supply Input Voltage DC 12V
Power Input Connector 1 × 3.5 Ø DC Jack connector
Power Consumption Maximum 30 W
Mechanical Construction Aluminum top cover chassis housing
Galvanized steel sheet (SECC) body chassis housing
Front removable aluminum faceplate
Dimension 177 mm (W) × 30 mm (H) × 125 mm (D) (6.96" × 1.18" × 4.92")
Weight Net 0.68 kg
Venting Holes Stylish venting holes on left & right plates
Mounting VESA mounting holes on bottom chassis
Environmental Specification Operating Temperature 0°C up to 40 °C
Storage Temperature -10°C ~ 60 °C
Relative Humidity 0 ~ 90% @ 45°C, non-condensing
Shock during Operation N/A
EMC Approved Industrial PC, CE, FCC Class B
Safety CB/CCC/KCC
Software Compatibility Operation System 32/64bit Windows 7 & 8
Windows Embedded Standard 7
Embedded Linux
