Overview

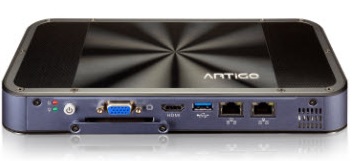

The VIA ARTiGO A1200 PC kit is an ultra slim PC kit for enthusiasts who want a compact fanless system without sacrificing computing power. Taking inspiration from the Em-ITX form factor, the VIA ARTiGO A1200 offers an impressive range of features including a full 64-bit dual core processor, HD video support, dual independent display support, up to 4GB of DDR3 system memory and a rich I/O set in a chassis that a mere 3cm height.

VIA ARTiGO A1200: Compact Computing Redefined

The VIA ARTiGO A1200 is one of the slimmest full featured PC kits on the market today with an ultra low-profile design measuring a mere 23.4cm x 12.4cm x 3.0cm (W X D X H). The VIA ARTiGO A1200 utilizes the innovative industrial buckled-blade thermal fin design to dispatch system heat and provide reliable and stable performance in temperatures ranging from 0ºC~45ºC. The passively cooled design ensures a quiet, dust free computing experience while remaining within a low power thermal envelope.

A power efficient 1.0GHz VIA Eden™ X2 dual core processor is combined with the highly integrated all-in-one VIA VX900 media system processor (MSP), delivering exceptional multimedia experience to the VIA ARTiGO A1200, including playback of the most demanding HD video formats, including MPEG-2, WMV9, VC1, and H.264. This slim PC fits easily into any environment, whether it is behind a monitor or on the wall with a 10 × 10 cm VESA mount or placed alongside other home media devices. It is suitable for a myriad of applications in the home or office, including home server, home automation, hotel automation, media streaming, digital signage and surveillance applications.

The unique dual-sided I/O coastline interface includes one HDMI and one VGA display port, two high-speed GigaLAN Ethernet ports, four USB 2.0 ports, one CFast socket, two audio jacks (Mic-in and Line-out) and 12V DC-in power.


Specification
Processor 1.0GHz VIA Eden™ X2 CPU
Front Side Bus Speed 800MHz
2MB L2 Cache memory
Chipset VIA VX900 Media System Processor
System Memory 1 DDR3 1066 204-pin SDRAM SODIMM socket
Up to 4GB memory size
VGA Integrated VIA Chrome 9™ HD DX9 3D/2D video processor with MPEG-2, WMV9/VC1, H.264 video decoding acceleration
Storage Interface 1 SATA interface for 2.5" HDD or Flash SSD
1 Built-in CFast socket
Operating System Support Windows 7, Windows Embedded Standard 2009, Linux
LAN Port 2 VIA VT6130G RJ-45 connectors for Gigabit Ethernet connection
Wireless Supports WLAN/GPRS/EDGE/UMTS/HSDPA module (optional)
USB Ports 4 USB 2.0 host ports
Audio Ports 1 x Line-out,1 x Mic-in
Display Ports 1 x VGA port, 1 x HDMI port (HDMI and VGA support dual independent display)
LED Indicator 1 x HDD active indicator
1 x Power on indicator
Input Voltage DC 12V
Power Supply 100~240v input AC/DC adapter
Dimensions 234 x 30 x 124 mm / 9.2” x 1.2” x 4.8” (W x H x D)
Weight 1.2 kg / 2.64lbs (w/o HDD)
