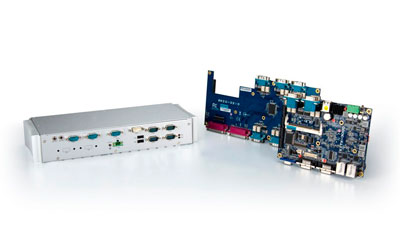

| Model Name |
|
AMOS-5210 |
| Chassis Construction |
Construction |
Metal Chassis Housing
Dual front & rear metal face plates
Aluminum bottom chassis housing mixed copper heat-pie (installed with EITX-3000 board) |
| Dimension |
330.6 mm (W) × 54.2 mm (H) × 124.8 mm (D) (when system equipped with aluminum bottom chassis housing) |
| Weight |
0.7 Kg (front plate & rear plate & top cover plate)
2.4 Kg (front plate & rear plate & top cover plate & aluminum bottom chassis housing) |
| Front I/O Ports |
LED |
1 × Green color LED to indicate the Power on/off status
1 × Red color LED to indicate the HDD activities status |
| COM |
7 × Front-access COM ports by 7 × D-Sub 9-pin connectors (onboard 5 × RS232/422/485 by 5 × DB-9 connectors of COM 1, 2 and COM5~7, with support of RS485 AutoFlow Control, 2 × RS232 by 2 × DB-9 connectors of COM 3 ~ 4) |
| USB |
2 × Front-access USB ports (onboard 2 × USB connectors, USB 2.0 compliant)
Reserved cutouts for additional support of 2 × mini-DIN connectors via cable located on front plate, when system is equipped with Compact Flash only |
| GPIO |
1 × Front-access GPIO port by D-sub 9-pin male connector (optional GPIO cable to support GPIO connector) |
| Audio |
2 × Front-access 3.5" audio jack as Line-out and Mic-in (via board to board cable from audio pin header of EITX-3000 board) |
| Power Input |
1 × 2-pole Phoenix power input connector (onboard power input connector) |
| Power on/off Switch |
1 × ATX Power on/off button (onboard power on/off button) |
| Rear I/O Ports |
COM |
3 × Rear-access COM ports by 3 × D-Sub 9-pin connectors (onboard 3 × RS232/422/485 by 3 × DB-9 connectors of COM8~10) |
| Parallel |
2 × Rear-access 25-pin LPT connectors (onboard 2 × 25-pin LPT
connectors as LPT_1 and LPT_2) |
| USB |
Reserved cutouts for additional support of 2 × mini-DIN connectors via cable located on rear plate, when system is equipped with Compact Flash only |
| LVDS |
2 × Rear-access D-sub 26-pin LVDS connectors (onboard 2 × DB-26 connectors as LVDS_1 and LVDS_2) |
| LAN |
2 × Rear-access RJ-45 connectors (onboard 2 × GigaLAN connectors as LAN_1 and LAN_2) |
| VGA |
1 × Rear-access D-sub 15-pin VGA connector (onboard D-Sub 15-pin VGA connector) |
| Antenna Hole |
1 × Antenna hole to support optional Wireless LAN module |
| Drive Bay |
HDD Bay |
Default support 1 × 2.5” SATA hard disk drive bay located at aluminum bottom chassis housing by P/N of AMOS-5210-1MZZA1 |
| |
Compact Flash |
Default support a Compact Flash type I/II socket from EITX-3000 board |
| Mounting |
|
Supports table mount |
| Environmental Specifications |
Operating Temperature |
0°C up to 45 °C (when system equipped with HDD)
-20°C ~ 55°C (when system only equipped with Compact Flash) |
| Storage Temperature |
-20°C ~ 60 °C |
| Relative Humidity |
0 ~ 90% @ 45°C, non-condensing |
| Vibration Loading During Operation |
With Compact Flash disk:
5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1 Oct./min, 1hr/axis
With 2.5” hard disk drive located at aluminum bottom chassis housing by P/N of AMOS-5210-1MZZA1
1Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1 Oct./min, 1hr/axis |
| Shock During Operation |
With Compact Flash disk:
50G, IEC 60068-2-27, half size, 11ms duration
With 2.5” hard disk drive located at aluminum bottom chassis housing by P/N of AMOS-5210-1MZZA1
20G, IEC 60068-2-27, half size, 11ms duration |
| EMC Approved |
CE, FCC Class A |
Software
Compatibility |
Operation System |
Microsoft Windows XP, Windows 7, Microsoft Windows XP Embedded Standard, Windows Embedded Standard 7, Linux Debian 6 (Kernel 2.6.32) |
