AMOS-3005 Specifications

Model Name AMOS-3005
Processor 1.2GHz VIA Eden® X4
Chipset VIA VX11 Media System Processor
BIOS AMI BIOS, 32Mbit Flash memory
System Power
Wake-on LAN, keyboard power-on, timer power-on, system power management, AC power failure recovery, Watchdog timer control
System Memory 1 DDR3 1333 SDRAM SODIMM socket
Up to 8GB memory size
Storage Supports 1 mSATA slot
Graphics Integrated Chrome® 640 DX11 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding accelerator
Audio VIA VT2021 High Definition Audio Codec
Display I/O 1 HDMI port
1 VGA port supporting VGA resolutions up to 2048 x 1536 pixels
Dual independent VGA + HDMI display at different resolutions, pixel depths, and refresh rates
USB 2 USB 3.0 ports,
2 USB 2.0 ports (lockable USB ports for secure connections)
LAN 2 Realtek RTL8111G PCIe Gigabit Ethernet controllers
COM Fintek F71869ED
Expansion I/O 1 miniPCIe slot
1 SIM slot

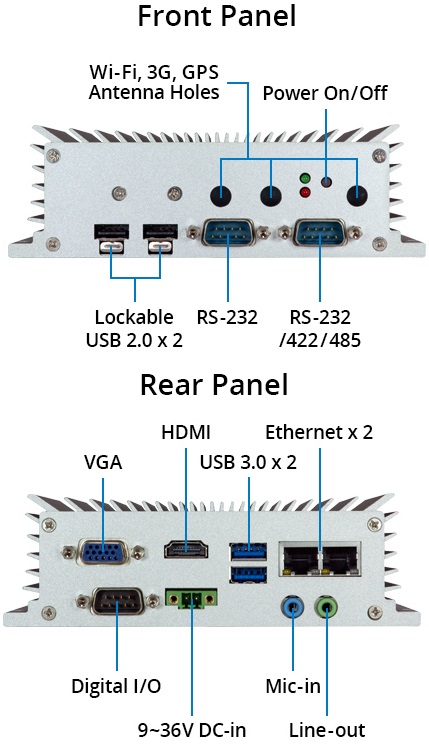

Front Panel I/O 2 Lockable USB 2.0 ports
2 COM ports for RS-232/422/485
1 Power on/off button
1 Red LED for HDD activity
1 Green LED for power status
Back Panel I/O 2 USB 3.0 ports
1 HDMI port
1 VGA port
2 Gigabit Ethernet ports
1 DIO port for 8-bit GPIO
2 Audio jacks: Line-out and Mic-in
1 2-pole Phoenix DC jack
Power Supply 9 ~ 36V DC-in (typical: 19W)
Operating System Windows® 10/8.1/8/7, WES 7, Linux
Watchdog Timer System reset; programmable 1-255 sec
Mechanical Construction Aluminum top chassis housing
Metal chassis housing
Dual removable front & rear metal face plate
Mounting Wall/DIN Rail/VESA mountable
Dimensions 150.5mm(W) x 48.1mm(H) x 109.8mm(D) (5.93" x 1.89" x 4.32")
Weight 1.4kg (3.08lbs)
Operating Temperature 0°C ~ 60°C with qualified indsutrial grade mSATA
Storage Temperature -20°C ~ 70°C
Operating Humidity 0% ~ 95% (relative humidity; non-condensing)
Vibration Loading During Operation With mSATA Flash Drive: 5Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis
Shock During Operation With mSATA Flash Drive: 50G, IEC 60068-2-27, half size, 11ms duration
Compliance CE/FCC
