Model Name AMOS-3003
Processor 1.2GHz VIA Nano® X2 E-Series CPU
Chipset VIA VX11H Media System Processor
BIOS AMI Aptio UEFI BIOS, 32Mbit Flash memory
System Power Management ACPI 3.0 compliant, Wake-on LAN, keyboard power-on, timer power-on, system power management, AC power failure recovery, Watch Dog timer control
System Memory 1 DDR3 1333 SODIMM socket
Up to 8GB memory size
Storage 1 SATA slot for 2.5" SSD
1 mSATA SSD slot
Graphics Integrated VIA Chrome® 640 DX11 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration
Audio VIA VT2021 High Definition Audio Codec
Display I/O 1 HDMI port
1 VGA port supporting VGA resolutions up to 2048 x 1563 pixels
Dual independent VGA + HDMI display at different resolutions, pixel depths, andrefresh rates
USB 2 USB 3.0 ports and 3 USB 2.0 host ports
LAN VIA VT6130 PCIe Gigabit Ethernet controller
Realtek RTL8111G PCIe Gigabit Ethernet controller
Supports Wake On LAN (WOL)
Supports Preboot Execution Environment (PXE)
11x5-pin header reserved to support VIA VNT9271 802.11n Wi-Fi USB module
COM Onboard Fintek super I/O F81865 controller
Expansion I/O 2 miniPCIe slots (supports 2 SIM slots)
Supports optional Wi-Fi/3G modules
Supports 3 external antenna for Wi-Fi, 3G module, and GPS module

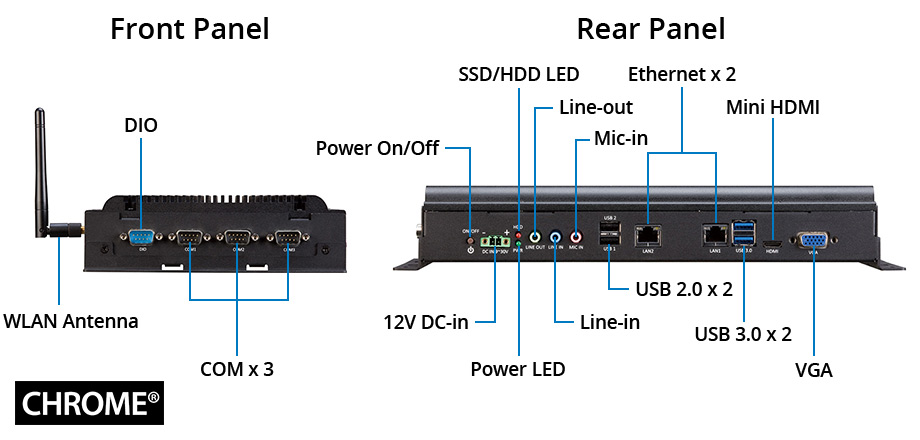

Back Panel I/O 2 USB 3.0 ports
2 USB 2.0 ports
1 Mini HDMI port
1 VGA port
2 Gigabit Ethernet ports
3 Audio jacks: Line-out, Line-in and Mic-in
1 Power on/off button
1 Red LED for HDD activity
1 Green LED for power status
1 2-pole Phoenix DC jack
Left Side I/O 1 DIO port for 8-bit GPIO
3 COM ports for RS-232/422/485 (powered by selectable 5V/12V)
Watch Dog Timer System reset; programmable 1-255 sec
Power Supply 9V ~ 30V DC-in (typical: 27W)
Supports over voltage protection, over current protection, under voltage protection
Operating System Windows® 7, WES 7, Linux
Mechanical Construction Aluminum mixed with heavy-duty steel with heat pipe embedded
Aluminum top cover mixed with copper heat-pipe
Mounting Built-in wall mountable brackets on system chassis
Dimensions 311mm(W) x 50.6mm(H) x 185mm(D) (with wall mountable brackets)
Weight 3.5kg (7.7lbs)
Operating Temperature -10°C ~ 60°C
Storage Temperature -20 °C ~ 70 °C
Operating Humidity 10% ~ 90% @ 45°C (non-condensing)
Vibration Loading During Operation With mSATA or 2.5” SSD: 3Grms, IEC 60068-2-64, random, 5 ~ 500Hz, 1hr/axis
Shock During Operation With mSATA or 2.5” SSD: 50G, IEC 60068-2-27, half size, 11ms duration
Compliance CE / FCC
