Key Features:

  • Compact 17cm x 17cm Mini-ITX form factor
  • Choice of VIA Eden® X4, VIA C7®-D, and VIA C7® processors
  • DX9 graphics with MPEG-2/WMV9/VC1/H.264 decoding acceleration
  • Rich I/O and connectivity features
  • Supports up to six COM ports

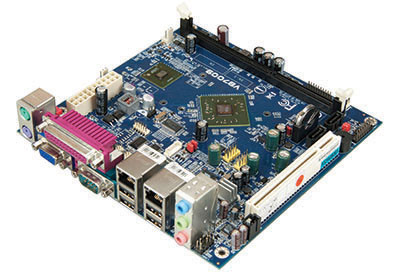

Model Name VB7009
Processor -12QCE: 1.2GHz VIA Eden® X4 (fanless)
Chipset VIA VX900 Media System Processor
BIOS AMI BIOS, 8Mbit Flash memory
System Memory 1 DDR3 1066 DIMM slot
Up to 4GB memory size
Storage 2 SATA connectors
Graphics Integrated VIA Chrome®9 HD DX9 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration
LAN 2 VIA VT6130 PCIe Gigabit Ethernet controller
Audio VIA VT1708S High Definition Audio Codec
Super I/O Fintek 81865F-I
Expansion I/O 1 PCI slot

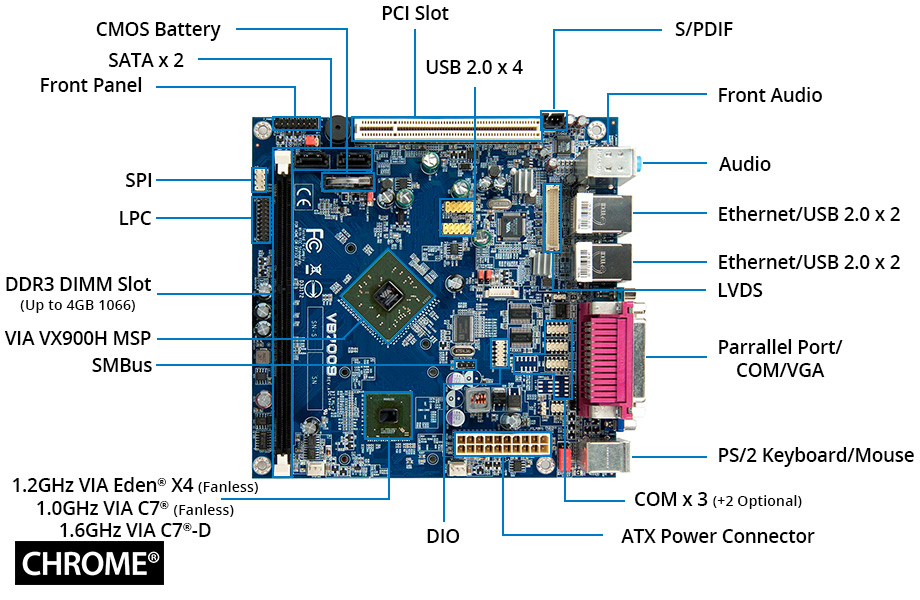

Onboard I/O 2 SATA connectors
2 USB 2.0 pin headers for 4 ports
1 Dual-channel 18/24 bit LVDS panel connector
1 LVDS panel power selector (5V/3.3V)
1 LVDS inverter pin header
1 LVDS inverter power selector (5V/12V)
5 COM port pin headers 2 optional (powered with selectable 5V/12V)
1 LPC pin header
1 SMBus pin header
1 S/PDIF-out connector
1 Digital I/O pin header (4 GPI + 4 GPO)
1 Front audio pin header for Line-out, Mic-in
2 Smart Fan pin headers for CPU and system
1 ATX power connector
1 PCI slot

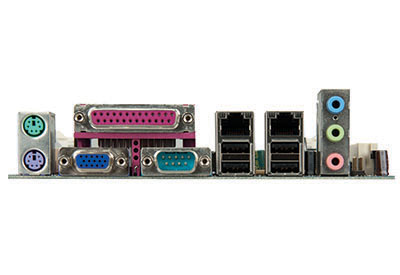

Back Panel I/O 4 USB 2.0 ports
1 VGA port
1 COM port
1 Parallel port
2 Gigabit Ethernet ports
3 Audio jacks: Line-in, Line-out, and Mic-in
2 PS/2 keyboard/mouse ports
Power Supply ATX power connector
Operating System Windows® 7, WES 7, Windows® CE, Linux, POSReady 7
System Monitoring and Management Wake-on-LAN, Keyboard Power-on, Timer Power-on, System power management, AC power failure recovery, Watch Dog Timer
Operating Temperature 0°C ~ 60°C
Operating Humidity 0% ~ 95% (non-condensing)
Form Factor Mini-ITX (17cm x 17cm, 6.7" x 6.7")
Compliance CE/FCC
