  • Compact 17cm x 17cm Mini-ITX form factor
  • Fanless 1.6GHz VIA Eden® X4
  • VIA VX11H MSP
  • Advanced DirectX® 11 graphics with MPEG-2/WMV9/VC1/H.264 decoding acceleration
  • Advanced I/O and connectivity features

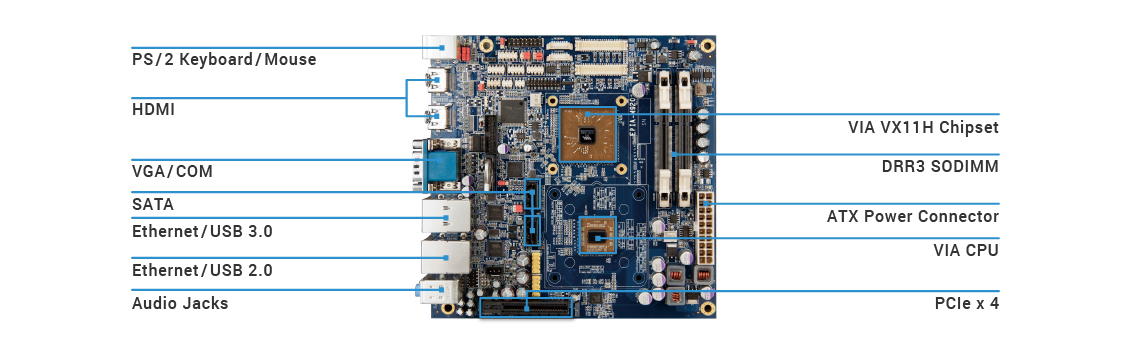

Model Name EPIA-M920
Processor -16QE: 1.6GHz VIA Eden® X4 (Fanless)
Chipset VIA VX11H Media System Processor
BIOS AMI Aptio UEFI BIOS, 4Mbit Flash memory
System Memory 2 DDR3 1333 SODIMM slots
Up to 8GB memory per slot
Storage 2 SATA connectors
Graphics Integrated C-640 DX11 3D/2D graphics with MPEG-2, WMV9, VC1 and H.264 video decoding acceleration
LAN Realtek RTL8111G (EPIA-M920-10E: VIA VT6130)
Audio VIA VT2021 High Definition Audio Codec
Super I/O Fintek F71869E
Expansion I/O 1 PCIe x4 slot
Onboard I/O 2 SATA connectors
2 SATA DOM power selectors
1 USB 3.0 pin header for 1 port
2 USB 2.0 pin headers for 4 ports
1 Dual channel 18/24-bit LVDS panel connector
1 Single channel 18/24-bit LVDS panel connector
3 COM port pin headers (powered with selectable 5V/12V)
1 LPC pin header
1 SMBus pin header
1 S/PDIF-out connector
1 Digital I/O pin header (4 GPI + 4 GPO)
1 Front audio pin header for Line-out, Mic-in
2 Smart Fan pin headers for CPU and system
2 Backlight control connectors for inverter power and brightness control
1 SD card (SDHC/SDXC) pin header
1 ATX power connector
1 PCIe x4 slot

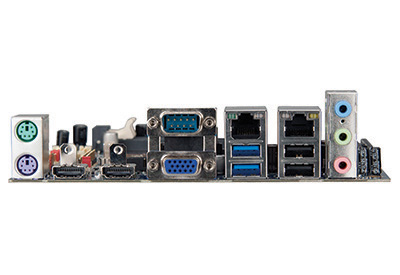

Back Panel I/O 2 USB 3.0 ports
2 USB 2.0 ports
2 HDMI ports
1 VGA port
1 COM (powered with selectable 5V/12V)
2 Gigabit Ethernet ports
3 Audio jacks: Line-in, Line-out, and Mic-in
2 PS/2 keyboard/mouse ports
Power Supply ATX power connector
Operating System Windows< sup="" style="box-sizing: border-box;"> 10 / 8.1 / 8 / 7, Win 10 IoT, WES 7, Linux, POSReady 7<>
System Monitoring and Management Wake-on-LAN, Keyboard Power-on, Timer Power-on, System power management, AC power failure recovery, Watchdog Timer
Operating Temperature 0°C ~ 60°C
Operating Humidity 0% ~ 95% (non-condensing)
Form Factor Mini-ITX (17cm x 17cm, 6.7" x 6.7")
Compliance CE/FCC
