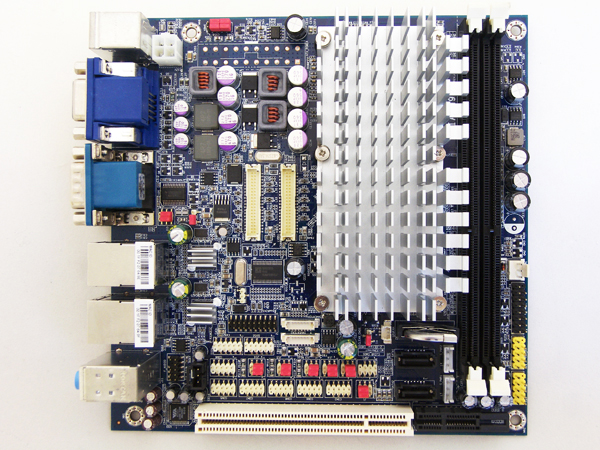

Mini-ITX Board with 1.0GHz Eden™ X2 CPU, MPEG-2, WMV9, H.264, 2 × LVDS, 1 × HDMI, 1 × VGA, 8 × COM, 8 × USB, 2 × SATA, 2 × GigaLAN, 1 × PCIe, 1 × PCI, ATX power.
|

- Active and passive cooling configurations
- Hardware acceleration for MPEG-2, WMV9, VC-1 and H.264 video
- Support for up to 8GB of DDR3
- On board HDMI and VGA ports, plus two 18/24-bit LVDS
- Supports dual Gigabit Ethernet, eight USB 2.0 ports
- Eight COM ports (expandable to 12 with the VIA LPC-01/02 add-on card)
- Available with ATX or DC-in power supply support
- Designed for advanced Industrial Automation, POS, Kiosk, ATM, Gaming, Digital Signage, Healthcare and Digital Media Applications
|
| Specification |
| Model Name |
EPIA-M910-10E |
| Processor |
1.0GHz VIA Eden™ X2 (fanless) |
| Chipset |
VIA VX900 Media System Processor |
| System Memory |
2 × DDR3 1066 DIMM
Supports up to 8GB memory size
The real memory size may show less than 8GB due to some capacity are used for BIOS or other functions. |
| VGA |
Integrated VIA Chrome™9 HD DX9 3D/2D graphics with VC1, MPEG-2, WMV9 and H.264 decoding acceleration |
| Onboard Serial ATA |
2 × SATA connectors
2 × SATA 3.5" HDD Auxiliary Power(for DC-in SKU only) |
| Onboard LAN |
2 × VIA VT6130 PCIe Gigabit Ethernet controllers |
| Onboard Audio |
VIA VT2021 High Definition Audio Codec |
| Onboard I/O Connectors |
2 × USB 2.0 pin headers for 4 ports
2 × SATA connectors
2 × SATA Power connectors (DC-in SKU)
2 × SATA DOM Power selectors
1 × Dual channel 18/24-bit LVDS (VT1636)
1 × Single channel 18/24-bit LVDS (VX900)
1 × Front audio pin header
1 × PS/2 keyboard/mouse pin header
6 × RS232 pin headers (powered with selectable 5V/12V)
1 × LPC pin header
1 × SMBUS pin header
1 × S/PDIF Out connector
2 × Digital I/O pin headers (GPI × 8, GPO × 8)
1 × Front panel pin header
2 × Smart Fan pin headers for CPU and Sys
1 × ATX or DC-in power connector
1 × PCI slot + 1 PCIe × 1 slot |

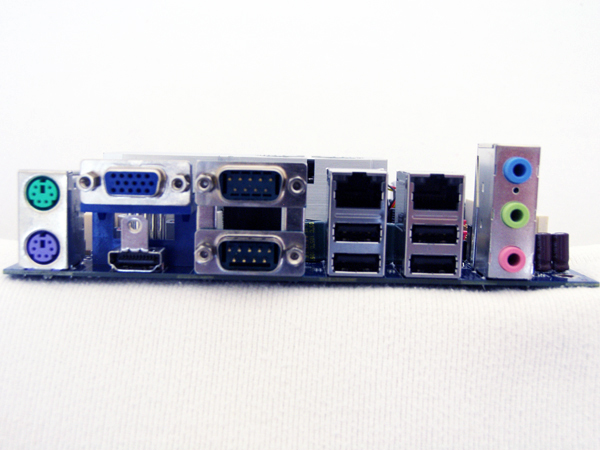

| Back Panel I/O |
2 × Serial ports (powered with selectable 5V/12V)
1 × VGA port
1 × HDMI port
2 × GigaLAN ports
4 × USB ports
3 × Audio jacks: Line-in, Line-out and MIC-in
2 × PS/2 KB/MS ports |
| BIOS |
AMI BIOS
8Mbit SPI flash memory |
| Operating System |
Windows 7, Windows Embedded Standard 7, POSReady 7, Windows XP, Windows Embedded Standard/Compact, Linux and VxWorks |
| System Monitoring & Management |
Wake-on-LAN, Keyboard-Power-on, Timer-Power-on
System power management, AC power failure recovery
Watch Dog Timer |
| Power |
ATX Power or 12V DC-in |
| Operating Humidity |
0% ~ 95% (relative humidity; non-condensing) |
| Form Factor |
Mini-ITX, 17 cm × 17 cm (6.7" × 6.7") |
* These specifications are subject to change without prior notice.
|
|
