A reliable, low-power and cost effective platform for fanless and small footprint embedded applications.

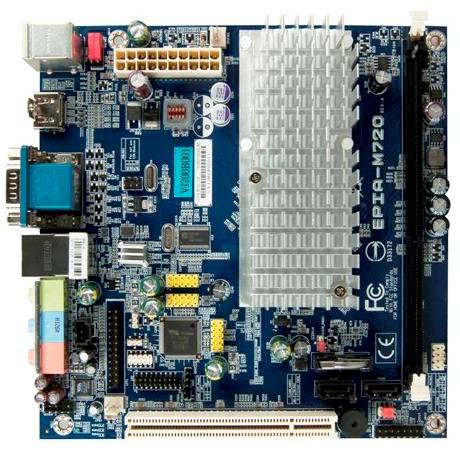

The VIA EPIA-M720 Mini-ITX mainboard combines a VIA 1.0GHz C7 processor with the VIA VX900H unified all-in-one media system processor, delivering a highly optimized platform that boasts comprehensive HD video performance, HD audio and HDMI support in a compact, power-efficient package to meet the broader scope of needs for today's advanced digital signage, POS, Kiosk, ATM, home automation, healthcare and media client system design applications.

The VIA EPIA-M720 supports up to 4GB of high bandwidth DDR3 1066 memory and two SATA II connections and also features the VIA ChromotionHD 2.0 video processor for advanced filtering and cutting edge post-processing for advanced filtering and cutting edge post-processing for MPEG-2, VC-1 and H.264 video formats.

Rear panel I/O includes two PS/2 ports (KB/MS), one HDMI port, one VGA port, one COM port, one Gigabit LAN port, two USB 2.0 ports and three audio jacks. An onboard PCI slot is accompanied with two SATA II connectors, an additional COM port, a further three USB 2.0 pin headers for 6 USB ports (including two optional ports), SPDIF out, one pin header for LPT and LPC, SPI, SMBus headers. It also supports Microsoft® Windows® 7, WES7, XP/2000, XPe and CE, as well as Linux, making it the ideal platform for developers to create a wide spectrum of applications.

Model Name EPIA-M720
Processor 1.0GHz VIA C7®
Chipset VX900H Media System Processor
System Memory 1 × DDR3 1066 DIMM socket up to 4GB memory size
Note: System resources (such as BIOS,PCI,etc,.) require physical memory address locations that reduce
available memory address above 3GB. This may result in less than 4GB of memory being available to the
operating system and applications
VGA Integrated VIA Chrome™9 HD DX9 3D/2D graphics & MPEG-2, VC1 and H.264 video decoding acceleration
Expansion Slots 1 × PCI slot
Onboard Super I/O Fintek F71869E LPC I/O
Onboard Serial ATA 2 × SATA II connectors
Onboard LAN VIA VT6130 Gigabit Ethernet controller
Onboard Audio VIA VT1708S High Definition Audio Codec
Onboard I/O Connectors 3 × USB 2.0 pin headers for 6 USB ports (including 2 optional ports)
1 × COM port for COM2
1 × COM voltage select jumper for COM2
1 × PS/2 keyboard/mouse pin header
1 × Front panel pin header
1 × SPI pin header
1 × SIR pin header
1 × Clear CMOS jumper
2 × SATA connectors
1 × SATA DOM voltage select jumper
1 × LPC connector
1 × LPT connector
1 × SMBus connector
1 × Buzzer
1 × S/PDIF-out connector
1 × Front panel audio connector for Line-out and Mic-in
2 × Fan connectors for CPU and system fans
1 × ATX power connector
Back Panel I/O 1 × PS2 mouse port
1 × PS2 keyboard port
1 × HDMI port
1 × COM port for COM1
1 × VGA port
1 × GigaLAN port
2 × USB 2.0 ports
3 × Audio jacks: Line-out, Line-in and Mic-in (horizontal, Smart 5.1 Support)
SPI 8Mbit Flash memory
Operating System Windows 7, Windows Embedded Standard 7, Windows XP, Windows Embedded CE,
Windows Embedded Standard, Linux
System Monitoring & Management System voltage monitoring
CPU voltage monitoring
Timer power-on, Wake-on LAN/KB/MS
AC power failure recovery
Operating Temperature 0 ~ 60°C
Operating Humidity 0% ~ 95% (relative humidity; non-condensing)
Form Factor Mini-ITX
17 cm × 17 cm (6.7" × 6.7")

* These specifications are subject to change without prior notice.
