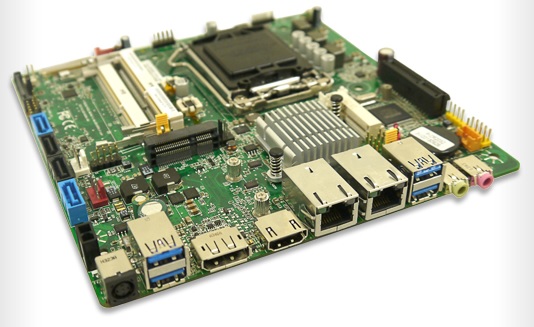

  • Support Intel 4th generation Intel Core Processor
  • LGA1150 Socket H3 CPU compatible (up to 65W)
  • Intel® vPro™ Technology support for business security
  • Dual high speed Gigabit Ethernet connection
  • Two PCI Express Mini Card connector for expansion
  • Features 4 SATA3 (6Gbps)
  • 4 Hi-Speed external USB3.0 ports support
  • Dual display connectivity by DP-out & HD-out
  • Embedded LVDS connectivity

Form Factor Low-profile Mini-ITX (20 millimeters [0.79 inches] × 170.18 millimeters
[6.7 inches] × 170.18 millimeters [6.7 inches])
Processor Intel Haswell H3 LGA1150 CPU Socket
Support up to Dual/Quad core 65W
Chipset Intel Lynx Point Q87 Chipset
Memory Support for DDR3 1066/1333/1600 MHz SO-DIMMs
Support for up to 16 GB of system memory
204-pin DDR3 SO-DIMM2
Display HD-in & HD-out connector
40P Embedded LVDS connector
Audio RealTek* ALC888 audio codec for 7.1 (8-channel) High Definition Audio (HD Audio) Included are:
Back panel audio connectors: Line-out & Mic
1 × Audio header for stereo speakers
1 × Audio header for front Panel Mic/Hp
1 × Audio header for DMIC
Expansion Capability PCI Express × 4 slot × 1
PCI Express Full-/Half-Mini Card slot × 1
PCI Express Half-Mini Card slot × 1
Peripheral Interfaces USB 2.0 front panel ports: 3 (Headers)
Serial port header: 2
SATA 3.0 Gb/s: 4
Legacy I/O Legacy I/O Controller (NCT6683D)
Security Intel® vPro™ Technology support
TPM security by Nuvoton NPCT420AA0WX(optional)
LAN Support Intel Clarkville I217-LM/I210-AT Gigabit (10/100/1000 Mb/s) IC
Dual Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs
64+32Mb Dual SPI
Support for Advanced Configuration and Power Interface (ACPI) setting
Instantly Available PC Technology Suspend to RAM support
Wake on PCI Express, LAN, front panel, serial, and USB ports
Hardware Monitor Subsystem Hardware monitoring through the Nuvoton6683D legacy I/O controller, including:
Remote thermal sensor
Speed control for 4-pin system fan header and 4-pin CPU fan header
Power Requirement 12/19V DC connectivity via back-panel DC jack Optional: 1 × standard ATX PSU 4-pin 12 connector
Environment Operating Temperature: 0°C to +60°C
Storage Temperature: -20°C to +70°C
Safety CE, FCC, UL
