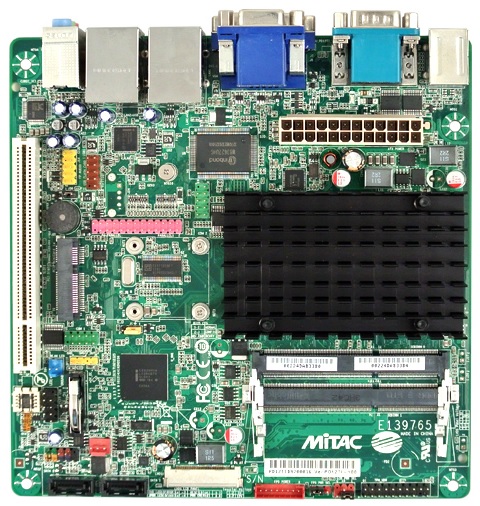

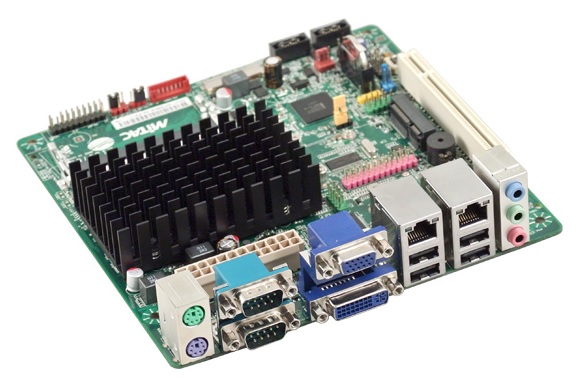

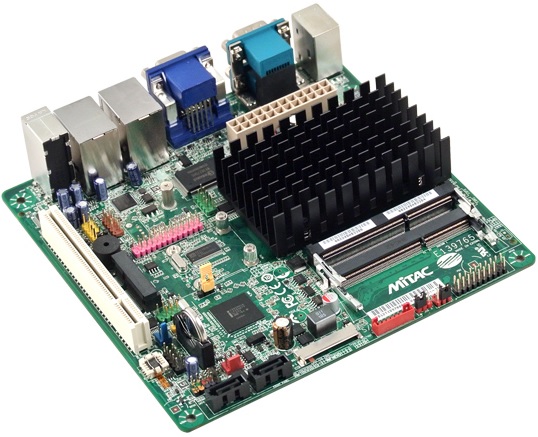

* Click to see the enlarged view

Features
Intel Atom D2500 dual core processor Intel Graphic Media Accelerator 3600 Single channel DDR3 with two connectors for MAX. 4GB memory Integrated Six-channel High Definition audio Features dual high speed Gigabit Ethernet connection Features 2 SATA 3Gb/s Eight Hi-Speed USB2.0 ports One PCI connector for the future Add-in card One PCI Express Mini Card connector for expansion card like Wifi Dual Display capability with VGA and DVI-I port

Specification
Model	MITAC PD12TI (D2500CCE)
Form Factor	Mini-ITX (170 millimeters [6.7 inches] × 170 millimeters [6.7 inches])
Processor Chipset	Passively-cooled, soldered-down dual-core Intel^® Atom processor with integrated graphics and memory controller
Main Memory	Two 204-pin Double Data Rate 3 (DDR3) Small Outline Dual Inline Memory Module (SO-DIMM) sockets with gold-plated contacts Support for DDR3 1066/1333/1600 MHz SO-DIMMs (DDR3 1333 MHz and DDR3 1600 MHz SO-DIMMs operate at 1066 MHz only) Support for up to 4 GB of system memory
Chipset	Intel^® NM10 Express
Integrated Graphics	Intel^® Graphics Media Accelerator 3600 (Intel^® GMA 3600) integrated graphics subsystem with support for digital video (DVI-I), VGA, and flat panel displays via an LVDS display interface
External Graphics	External graphics support provided through the PCI bus connector
Audio	RealTek* ALC662 audio codec for 5.1 (6-channel) High Definition Audio (HD Audio) and AC ’97 Audio. Included are: Back panel audio connectors Onboard S/PDIF digital audio header Front panel microphone/headphone header with support for HD Audio or AC ’97 Audio
Legacy I/O	Legacy I/O Controller (Nuvoton* W83677HG-I) that provides: Four serial ports: two via onboard headers and two via back panel connectors One parallel port via an onboard header Hardware management support
Expansion Capabilities	One PCI* bus add-in card connector One PCI Express* Full-Mini Card slot with Half-Mini Card support
Peripheral Interfaces	Seven USB 2.0 ports: Four back panel ports Three front panel ports (via two internal headers; a single-port header supports an Intel^® Z-U130 USB Solid-State Drive or compatible device Two Serial ATA (SATA) 3.0 Gb/s interfaces
Hardware Monitor Subsystem	Hardware monitoring through the Nuvoton* W83627DH-P legacy I/O controller, including: Remote thermal sensor One 3-pin system fan header with speed control
LAN Support	Intel^® 82574L Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
BIOS	Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS
Instantly Available PC Technology	Support for Advanced Configuration and Power Interface (ACPI) Wake on USB, PCI, PCI Express, LAN, serial, PS/2, and front panel
Power Requirement	ATX12V or SFX12V
Environment	Operating Temperature: 0 °C to +60 °C Storage Temperature: -20°C to +70°C
Safety	CE, FCC, UL
*** Formerly known as D2500CCE Intel has authorized their contract manufacturer, MITAC, to continue their mini-ITX product lines and extend their life cycle to 2015. Board will offer the same exact chip set, layouts, features, and BIOS as the D2500CCE. Only difference is the MITAC logo on the motherboard and in BIOS screen - everything else will remain exactly the same.
