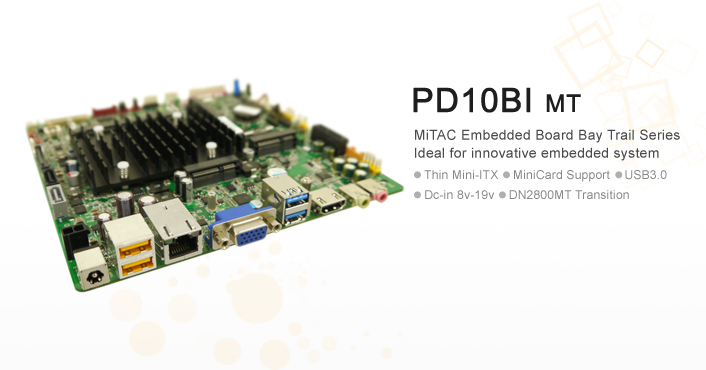

| Form Factor |
Low-profile Mini-ITX (20 millimeters [0.79 inches] × 170.18 millimeters [6.7 inches] × 170.18 millimeters [6.7 inches]) |
| Processor Chipset |
Intel Bay Trail J1900 Processor with integrated graphics (*Remark: Compatible with J1800 and J2900) |
| Memory |
Support for dual channel DDR3L 1333/1600(runs at 1333 MHz) SO-DIMMs |
| Support for up to 8 GB of system memory on a single SO-DIMM (or 4 GB each by 2 SO-DIMM) |
| 204-pin DDR3L SO-DIMM |
2 |
| Graphics |
Integrated graphics: |
| Digital displays (HD-Out) |
| Analog displays (VGA) |
| Internal flat panel displays: |
| LVDS |
| Embedded DisplayPort* eDP* |
| External graphics support via a PCI Express 1.0a x1 graphics add-in card connector |
| Audio |
2 + 2 Channel High Definition Audio ( HD Audio) using a Realtek* ALC888S audio codec supporting: |
| Analog stereo line-out (back panel jack) |
|
| In-chassis stereo speakers support (3 W/3 Ω via an internal header) |
| S/PDIF digital audio output (internal header) |
| DMIC digital microphone input (internal header) |
| Analog line-in (back panel jack) |
| Front panel HD Audio/AC’97 headphones/mic support (internal header) |
| 8-channel (7.1) HD Audio via the HD-Out interface |
| Expansion Capability |
PCI Express 1.0a x1 add-in card connector Option: PCI Express 1.0a x4 add-in card connector by 2 lanes |
1 |
| PCI Express Full-/Half-Mini Card slot |
1 |
| PCI Express Half-Mini Card slot |
1 |
| Peripheral Interfaces |
USB 2.0 front panel ports |
5 |
| USB 3.0 back panel connectors (blue) |
2 |
| USB 2.0 high-current/fast-charging ports (Yellow) |
2 |
| SATA 3.0 Gb/s |
2 |
| SATA 3.0 Gb/s port (multiplexed with an mSATA port, routed to the PCI Express Full-/Half-Mini Card slot) |
1 |
| Legacy I/O |
Legacy I/O Controller (NCT6683D) that provides: |
| Hardware management support |
| Serial ports onboard headers |
2 |
| Parallel port via an onboard header |
1 |
| LAN Support |
Realtek RTL8111G-CG Gigabit (10/100/1000 Mb/s) Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs |
| BIOS |
BIOS resident in a Serial Peripheral Interface (SPI) Flash device |
| Support for Advanced Configuration and Power Interface (ACPI), and System Management BIOS (SMBIOS) |
| Hardware Management |
Nuvoton NCT6683D based subsystem, including: |
| Voltage sense to detect out of range power supply voltages |
| Thermal sense to detect out of range thermal values |
| 3-pin system fan header with speed control |
| Power Requirement |
DC connectivity via back-panel DC jack(2.5mm/ ID, 5.5mm/ OD) |
| Internal 2 pin power connector |
| Environment |
Operating Temperature: 0°C to +60°C |
| Storage Temperature: -20°C to +70°C |
| Safety |
CE |
| FCC |
| UL |
