| Features | |
|
|
| Overview | |
| Model | JETWAY NMF95-Q87 |
| CPU | Intel® LGA 1150 Socket Core i7/i5/i3/Pentium Processor |
| Chipset | Intel® Q87 Chipset |
| Memory | 4 × 240 pin 8GB 1600/1333/1066 Dual CH DDR3 SDRAM DIMM Max. up to 32GB |
| Expansion Slots | 1 × PCIe x16 2 × PCI 1 × PCIe x4 1 × full size MINI PCI-E socket (Selectable with mSATA) |
| Storage | 5 × Serial ATA3 6Gb/s connectors support RAID 0, 1, 5, 10 |
| Audio | Realtek ALC662 6-Channel HD Audio CODEC |
| Ethernet LAN | Intel 82574L & I217LM PCI-E Gigabit Ethernet LAN |
| USB | Embedded 4 × USB 3.0 + 8 × USB 2.0/1.1 |
| Special Features | Support ACPI S3 Support CPU Smart FAN Support Watch Dog |

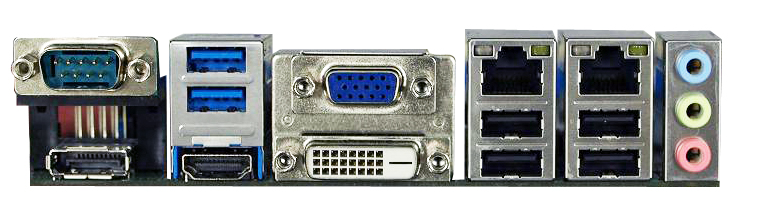

| Rear Panel I / O | 2 × USB 3.0 ports 4 × USB 2.0/1.1 ports 2 × RJ-45 ports 1 × COM port (Support RS232/422/485) 1 × VGA & 1 × DVI-D & 1 × HDMI port & 1 × DP port 3 × Audio Phone Jack |

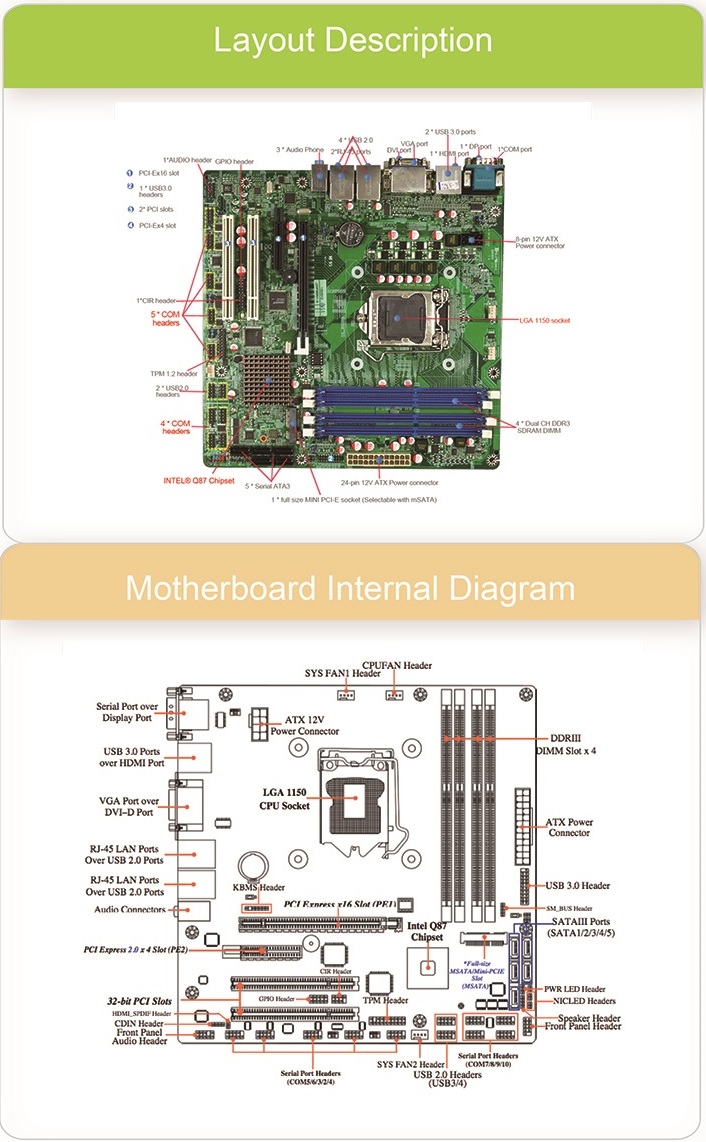

| Internal I / O | 1 × USB 3.0 header for 2 USB 3.0 ports 2 × USB 2.0/1.1 headers for 4 USB 2.0 ports CPU /NB / Chassis Fan connectors 1 × KB/MS headers 1 × GPIO header 9 × COM header ( COM2 & COM3 support RS232/422/485) 1 × TPM 1.2 header 1 × CIR header 1 × Chassis Intrusion header 1 × AUDIO header 1 × 24-pin & 8-pin 12V ATX Power connector |
| BIOS | AMI EFI 64MB DIP Flash ROM |
| Form Factor | Micro ATX form factor（244mm × 244mm） |
| Functional | ATM, Automation, Medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation |
| Certificate | CE, FCC, RoHS |
| Temperature | Operating within 0~60 centigrade Storage within -20-85 centigrade |
