| Features | |
|
|
| Overview | |

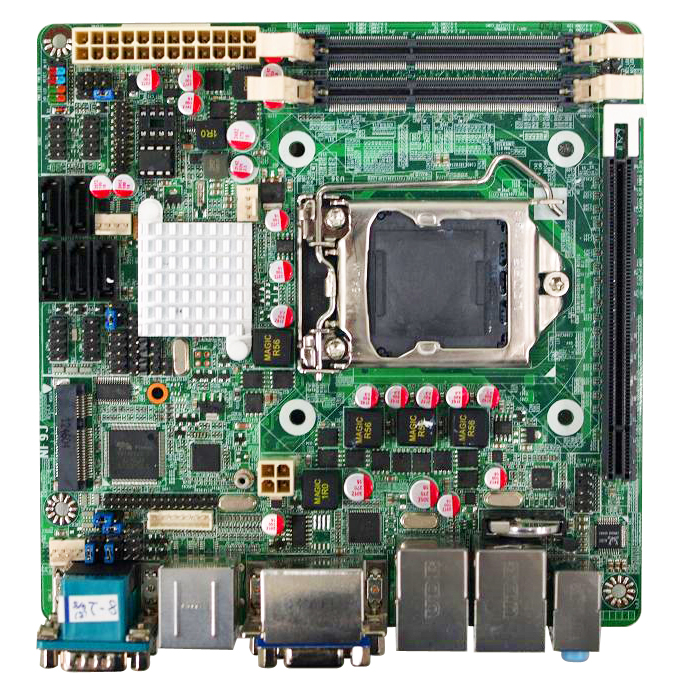

| Model | JETWAY NF9J-Q87 |
| CPU | Intel® LGA 1150 Socket Core i7/i5/i3/Pentium Processor |
| Chipset | INTEL® Q87 Chipset |
| Memory | 2 × SO-DIMM 1600/1333/1066 Dual CH DDR3 SDRAM DIMM Max. up to 16GB |
| Expansion Slots | 1 × PCIe x16 1 × Mini PCI-E socket (Selectable W/mSATA) |
| Storage | 5 × Serial ATA3 6Gb/s connectors support RAID 0, 1, 5, 10 |
| Audio | Realtek ALC662 6-Channel HD Audio CODEC |
| Ethernet LAN | Intel i211AT & I217LM PCI-E Gigabit Ethernet LAN |
| LVDS | Onboard 24-bit dual channel LVDS connector |
| USB | Embedded 6 × USB 2.0/1.1 & 4 × USB 3.0 |
| Special Features | Support ACPI S3 Support CPU Smart FAN Support Watch Dog |

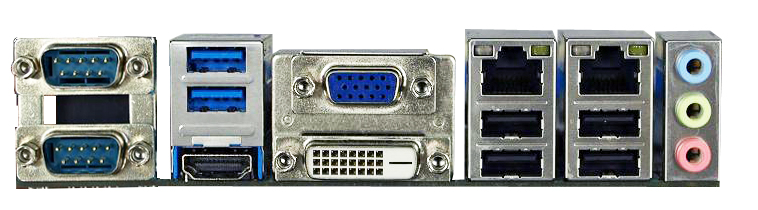

| Rear Panel I / O | 4 × USB 2.0/1.1 ports 2 × USB 3.0 ports 2 × RJ-45 ports 1 × HDMI port 2 × COM ports (COM1 RS232/422/485) 1 × DVI-D port 1 × VGA port 3 × Audio Phone Jack |
| Internal I/O | 2 × USB 2.0/1.1 headers for 4 USB 2.0 ports 1 × USB 3.0 headers for 2 USB 3.0 ports 1 × PS2/KB header CPU /NB / Chassis Fan connectors 2 × COM headers(COM4 Support RS232/422/485) 1 × GPIO header 1 × Chassis Intrusion header 1 × AUDIO header 1 × 24-pin & 4-pin 12V ATX Power connectors |
| BIOS | AMI EFI 64MB DIP Flash ROM |
| Form Factor | Mini-ITX Form Factor (170mm × 170mm) |
| Functional | ATM, Automation, Medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation |
| Certificate | CE, FCC, RoHS |
| Temperature | Operating within 0~60 centigrade Storage within -20-85 centigrade |
| Optional |  Jeway dual LAN connector for Mini PCI-E socket (Model: JADMPEIDLA) |
