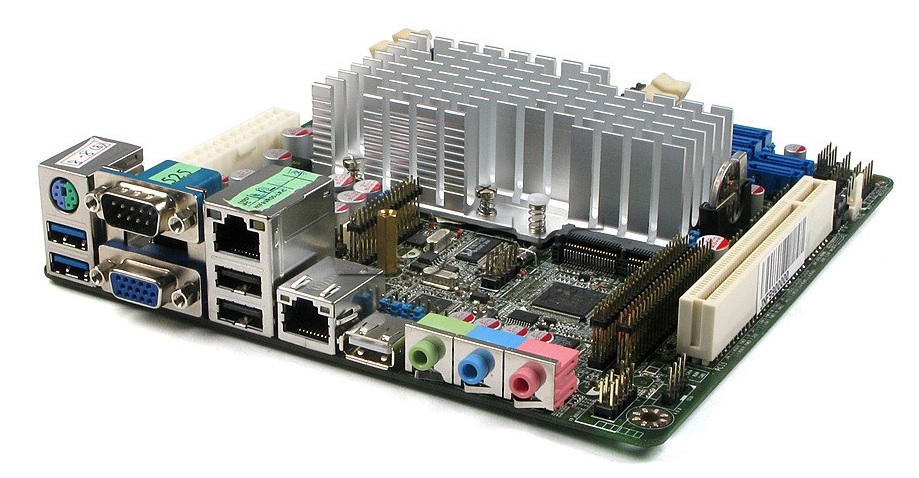

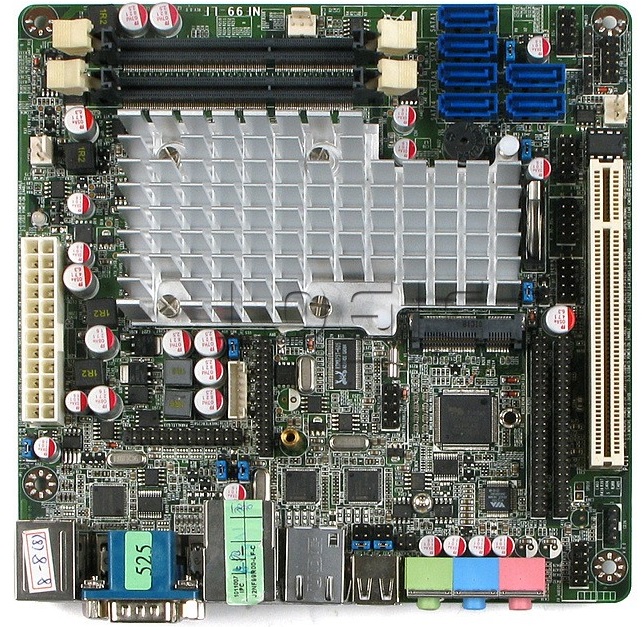

  * Click to see the enlarged view |
|
| Features | |
|
|
| Overview | |
| Model | JETWAY NF99FL-525 |
| CPU | Intel® Atom Processor D525 (Dual Core) CPU |
| Chipset | Intel® Atom Processor D525 + ICH9R Chipset Clock 200MHz |
| Memory | 2 × SO-DIMM Sockets for un-buffered Single Channel DDR3 800 SDRAM up to 4 GB |
| Expansion Slots | 1 × PCI slot 1 × MINI PCI-E |
| Storage | 6 × Serial ATA2 3Gb/s connectors |
| Audio | VIA VT1705 6-Channel HD Audio CODEC |
| Ethernet LAN | 2 × Intel 82574L PCI-E Gigabit Ethernet LAN |
| LVDS | Onboard 18-bits single channel LVDS connector |
| USB | Embedded 9 × USB 2.0/1.1 & 2 × USB 3.0 |
| Special Features | Support ACPI S3 Support CPU Smart FAN Support Watch Dog |
| Rear Panel I / O | 3 × USB 2.0/1.1 & 2 × USB 3.0 ports 1 × PS2/KB Connector (Optional) 2 × RJ-45 port 1 × COM port 1 × VGA port 3 × Audio Phone Jack |
| Internal I / O | 3 × USB 2.0/1.1 headers for 6 USB 2.0 ports CPU /NB / Chassis Fan connectors; 1 × 32-pin LVDS headers & 1 × GPIO header & 1* Parallel headers 1 × COM header ( COM1 for RS-422/485) 1 × AUDIO header |
| BIOS | AMI 8MB DIP Flash ROM |
| Form Factor | Mini ITX Form Factor(170mm x 170mm) |
| Functional | ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation |
| Certificate | CE, FCC, RoHS |
| Temperature | Operating within 0~60 centigrade Storage within -20-85 centigrade |
| Optional |
|
Jetway fast 3 LAN connector (Model: JAD3INLANG)
