| Features | |
|
|
| Overview | |

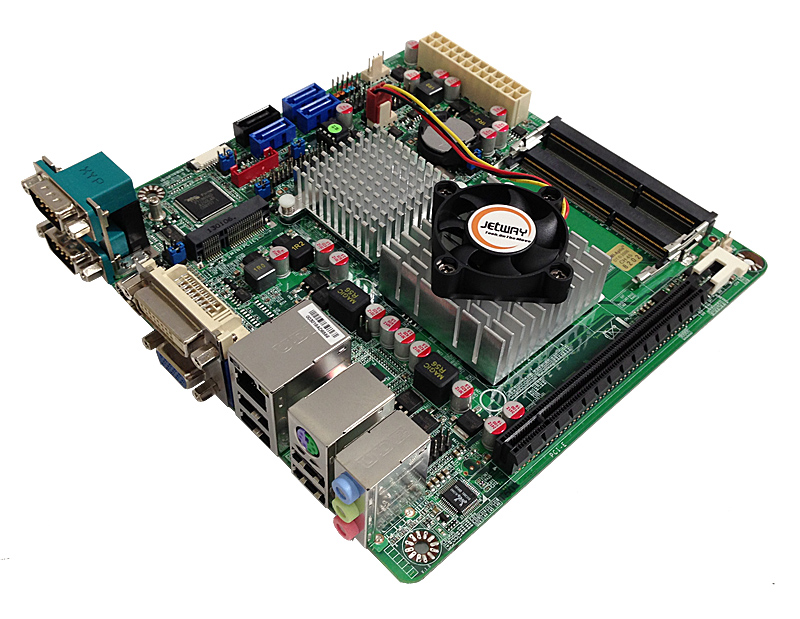

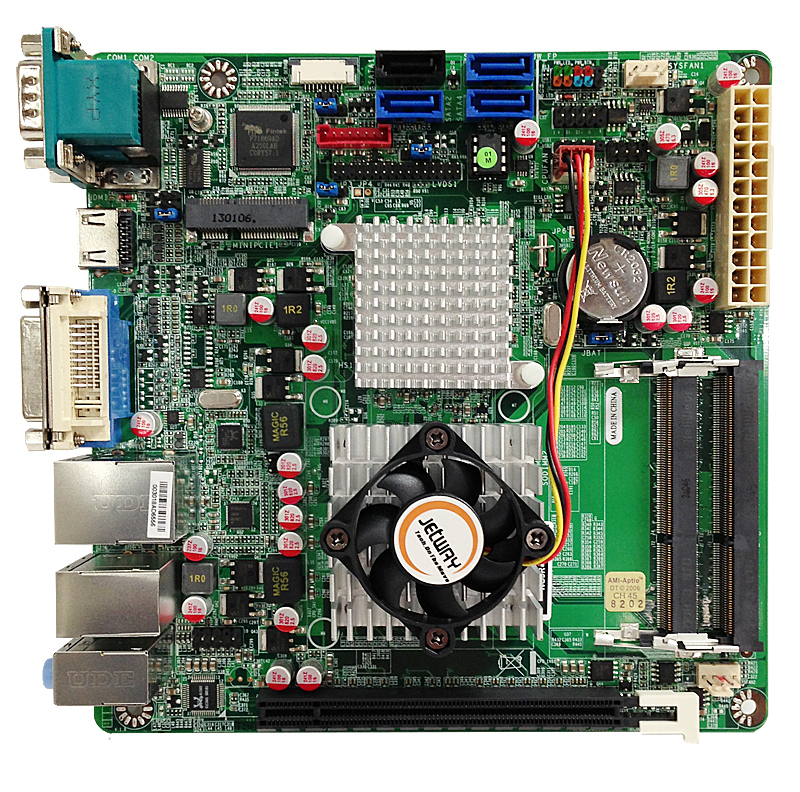

| Model | JETWAY NC9R-1037 |
| CPU | Intel Celeron 1037U 1.8GHz Dual-Core processor, 17W |
| Chipset | Intel NM70 Express Chipset |
| Video | Intel HD 2000 Graphics, 128/256MB Shared Memory, DirectX 10.1 |
| Memory | 2 × 204-pin DDR3-1333 SODIMM up to 16GB total |
| Expansion Slots | 1 × PCI Express 2.0 x16 1 × PCI Express Mini Card slot (half-size) |
| Storage | 1 × SATA3 6Gb/s port, 3 × SATA2 3Gb/s ports |
| Audio | Realtek ALC662 5.1 Channel HD Audio |
| Net Work | Realtek RTL8111F Gigabit LAN |
| Other Features Support | ACPI S3, CPU Smart FAN, Watchdog Timer 10-255 min/sec |

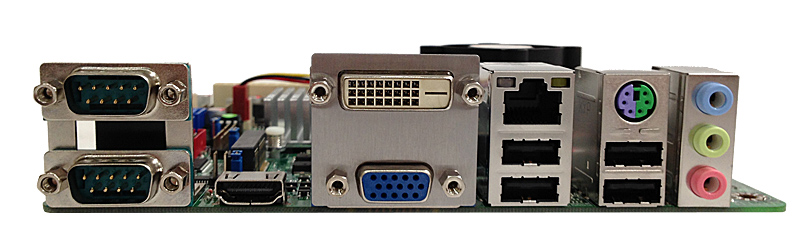

| Rear Panel I/O | 4 × USB 2.0 Ports 1 × RJ-45 Port 2 × Serial Ports 1 × HDMI 1 × DVI-D 1 × VGA 3 × Audio Jacks (Line In, Line Out, Mic In) 1 × PS/2 Mouse/Keyboard port |
| Internal I/O | 2 × USB Headers for 3 × USB 2.0 Ports CPU Fan connector, 2 × SYSFAN connectors 1 × 24-bit Dual channel LVDS & Inverter 24-pin ATX Power connector |
| BIOS | AMI UEFI 32MB DIP Flash ROM |
| Box Contents | NC9R Motherboard, SATA Cable, Manual, DVD Driver Disk, I/O Shield |
| Certification | CE, FCC, RoHS, ErP |
| Temperature | Operating Temperature 0~40 º C, Storage Temperature -20-85 º C |
| Form Factor | Mini-ITX Form Factor (170mm × 170mm) |
