Features
  • INTEL® Cedar Trail-D Processor D2550 + NM10 Chipset
  • Support 2 × DDR3 800/1067MHz Single CH up to 4GB
  • Support DirectX 9 Graphics
  • Support 2 × Serial ATAII (3Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 6-CH
  • 1 × 24 bits Single Channel LVDS header
  • Supports 2 × Realtek RT8111EVL Gigabit LAN
  • Support Watch dog Technology
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • Mini-ITX Form Factor (170mm x 170mm)

Overview

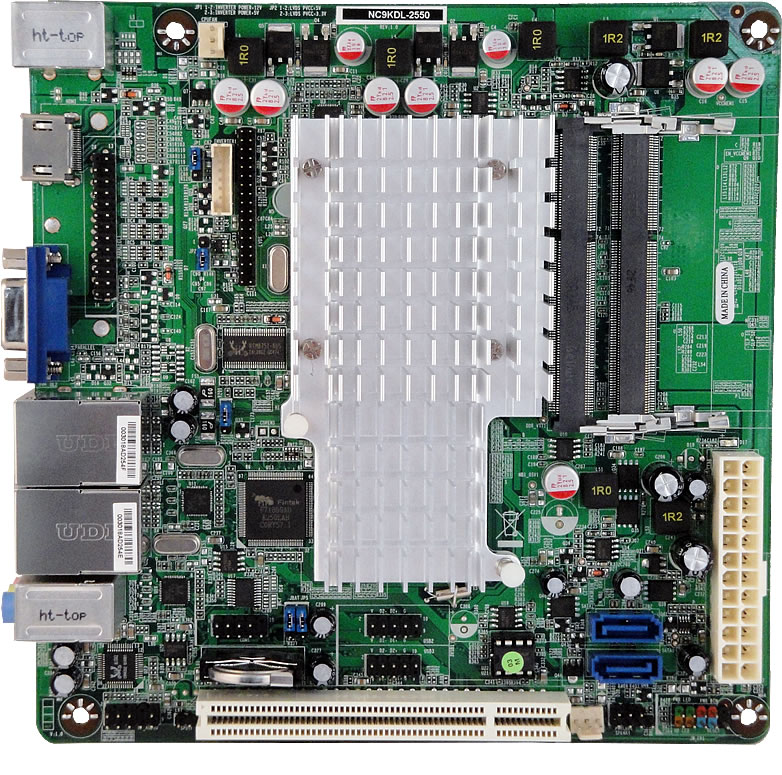

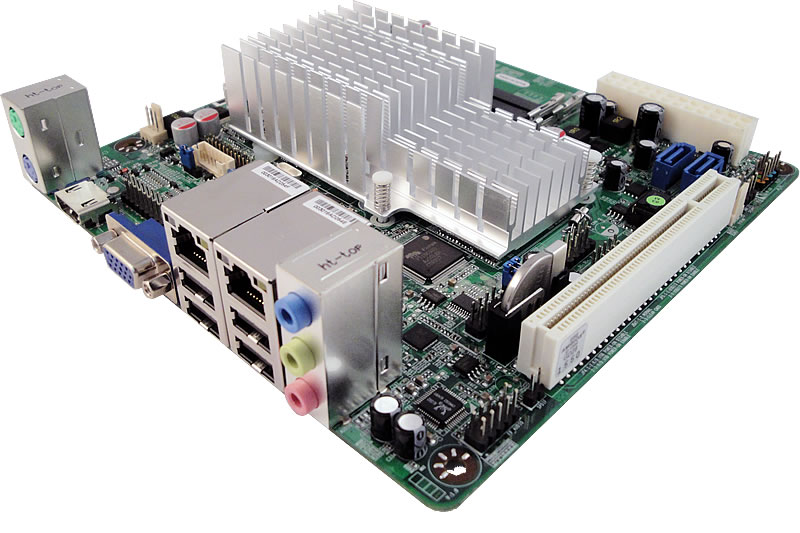

Model JETWAY NC9KDL-2550
CPU INTEL® Cedar Trail-D Processor D2550 CPU (1.86GHz)
Chipset INTEL® NM10 Express chipset
Memory 2 × DDR3 1067MHz Single CH SO-DIMM up to 4GB
Expansion Slots 1 × PCI slot
Storage 2 × Serial ATA2 3Gb/s connectors
Audio Realtek ALC662 6-Channel HD Audio
Ethernet LAN 2 × RTL8111EVL PCI-E Gigabit LAN
LVDS Onboard 24-bits single channel connector
USB Embedded 8 × USB 2.0/1.1
Special Features Support ACPI S3
Support CPU Smart FAN
Support Watch Dog

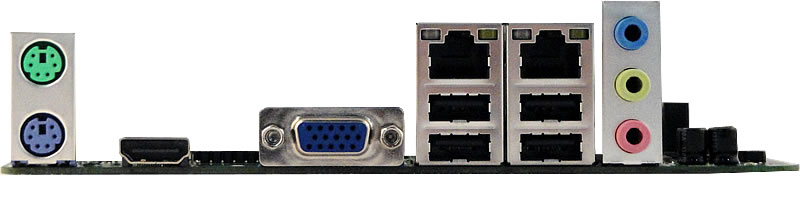

Rear Panel I/O 4 × USB 2.0/1.1 ports
1 × PS/2 Mouse & 1 × Keyboard connector
2 × RJ-45 port
3 × Audio I/O ports ( Line-in, MIC and Line-out )
1 × VGA port
1 × HDMI port
Internal I/O 2 × USB 2.0/1.1 headers for 4 USB 2.0 ports
2 × NB / Chassis Fan connectors;
1 × 24-pin ATX Power connector
1 × LVDS header/1 × Inverter header
1 × AUDIO header
1 × RS232 header
1 × Parallel header
BIOS AMI 16MB UEFI DIP Flash ROM
Functional ATM, Automation, Medical Equipment, Digital Signage, Networking, POS, General Application, Transportation
Packing Color Box Dimension:200(W) x 200(D) x 70(H)mm
Certificate CE, FCC, RoHS
Temperature Operating within 0~40 centigrade (Suggest to use system FAN)
Storage within -20-85 centigrade
Form Factor Mini ITX Form Factor(17cmx17cm)
