Features
  • Intel®  Bay Trail N2930 (QC, 1.83G)
  • Intel®  Bay Trail N2807 (DC, 1.58G)
  • Intel®  Bay Trail E3827 (DC, 1.75G)
  • Support DDR3L 1333MHz Single Channel, Onboard 2GB/4GB System Memory
  • Support 1 * Serial ATAII (3Gb/s) Device
  • Integrated Realtek ALC662 HD Audio CODEC with 4-CH
  • 1 * 24-bits Dual Channel LVDS header
  • Support HDMI (option VGA) Output
  • Supports 1 * Realtek RT8111G Gigabit LAN
  • 100 * 72 mm Pico Form Factor

Overview

Form Factor

Dimensions

- Pico (100 * 72 mm)

 Processor System

CPU

Intel® Celeron®  Processor N2930/N2807/E3827 (default N2930 Processor)

Core Number

by CPU

Max Speed

- by CPU

L2 Cache

- by CPU

Chipset

- SoC

BIOS

- UEFI

 Expansion Slot

PCI

- 0

Mini-PCIe

- 1 (half size)

mSATA

- 1 (full size)

PCIe

- 0

CFast Card Socket

- 0

CF Card Socket

- 0

 Memory

Technology

- Single Channel DDR3L 1333MHz

Max.

- 2GB default (4GB option)

Socket

- 0 ( Memory Onboard )

 Graphics

Controller

- Intel® HD Graphics

VRAM

- Shared Memory

VGA

1 (HDMI/VGA option)

LVDS

- 1 * Onboard 24-bits Dual channel connector

HDMI

1 (HDMI/VGA option)

DVI-I

No

DisplayPort

- No

MultiDisplay

- Yes (Dual Display)

 Ethernet

Ethernet

- 10/100/1000 Mbps

Controller

- GbE LAN: Realtek RTL8111G

Connector

- 1 * RJ 45

 SATA

Max Data Transfer Rate

- 1 * SATAII (3.0Gb/s)

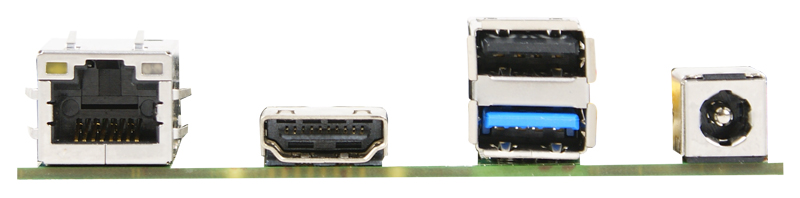

 Rear I/O

VGA

- 1 (HDMI/VGA option)

DVI-I

- 0

HDMI

- 1 (HDMI/VGA option)

DisplayPort

- 0

Ethernet

- 1

USB

- 2 (1 * USB 2.0 + 1 * USB 3.0)

Audio

0

Serial

- 0

eSATA

- 0

PS2

- 0

DC-input

- 1

 Internal Connector

USB

- 6 ( 6 * USB 2.0 via 10pin header )

PS2

- 0

LVDS / inverter

- 1

VGA

0

Serial

2 (1 * RS232/422/485, 1 * RS232 with 5V/12V selectable header)

SATA

- 1 * SATAII (3.0Gb/s)

mPCIe

- 1 (half size)

Parallel

- 0

mSATA

- 1 (full size)

CIR

- 0

GPIO 8-bit

- 0

Chassis intrusion

- 0

Audio Header

- 1

 Watchdog Timer

Output

- From Super I/O to drag RESETCON#

Interval

- 256 segments, 0,1,2…255sec/min

 Power Requirements

Input PWR

- +12V DC-In (2-pin PWR Con)

Power On

AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Certifications

Certifications

- CE, FCC, RoHS, REACH

 Environment

Temperature

- Operating: 0°C ~ 60°C

- Storage: -20°C ~ 85°C
