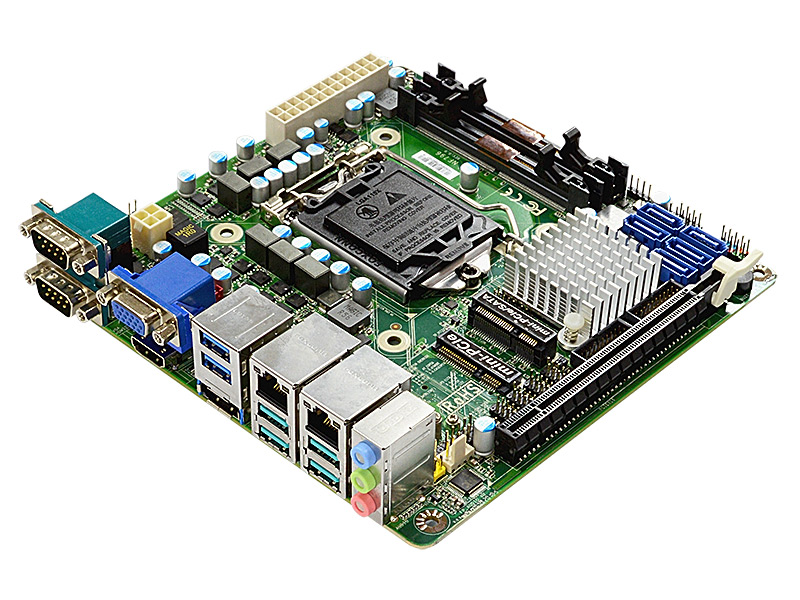

NF796-Q370

Features
- 8th / 9th Gen Intel® Core i7 / i5 / i3 / Pentium Processor
- Long-Life Embedded Class with Planned Lifecycle Through Q2'2033
- Supports DDR4-2666 SODIMM up to 32GB Total
- 2 * Intel Gigabit LAN, 6 * COM, 12 * USB
- Supports 3 Displays DP, HDMI, VGA, LVDS
- ECO-design for EuP/ErP

Model Name NF796
Part Number JNF796-Q370
Form Factor Mini-ITX (170 x 170mm)
Processor 8th & 9th Gen Intel® Core i7 / i5 / i3 / Pentium Processor up to 65W
Socket LGA 1151 (Formerly Coffee Lake)
Chipset Intel Q370
Memory 2 x 260-pin SODIMM un-buffered Dual Channel DDR4-2666 up to 32GB Total
Graphics Requires Intel Core processor with Intel HD Graphics OR a PCI-E x16 Discrete Graphics Card
Audio Realtek ALC662VD HD Audio
LAN 1 x Intel I219-LM PHY Gigabit LAN (iAMT 12.0)
1 x Intel I211-AT PCI-E Gigabit LAN
Storage 5 x SATA3 6Gb/s with RAID 0, 1, 5, 10
Super IO NUVOTON NCT6116D
TPM Intel fTPM 2.0 (PTT) Trusted Computing Firmware
Option: Onboard TPM v1.2 or v2.0

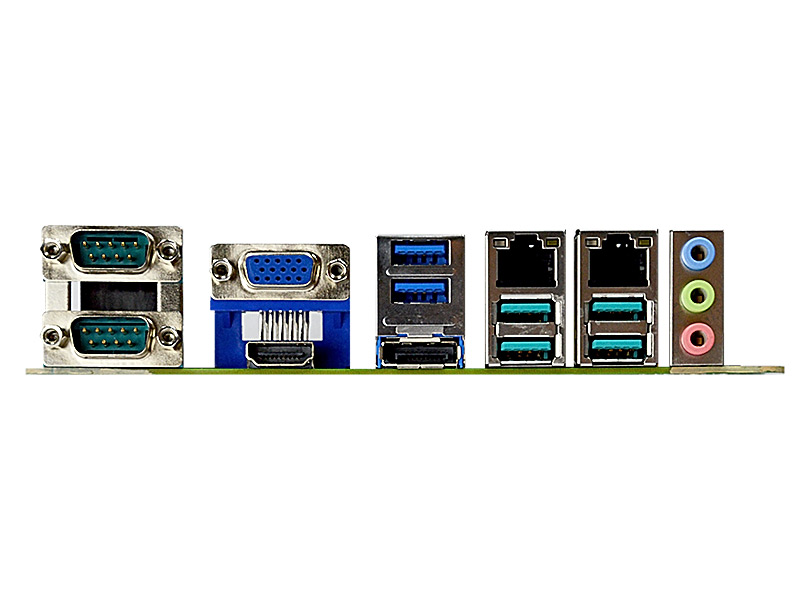

Back Panel Connectors
2 Serial Port (2 * RS232/422/485)
1 VGA (1920 * 1200)
1 HDMI 1.4 (4096 * 2160 @ 30Hz)
1 DP 1.2 (4096 * 2304 @ 60Hz )
4 USB 3.1 Gen 2 (10 Gb/s)
2 USB 3.1 Gen 1 (5 Gb/s)
2 RJ45 LAN (10/100/1000)
3 3.5mm Audio Jack
Onboard I/O Connectors
1 PCI-E 3.0 x16 Slot (by 16-lane & Bifurcation)
1 mSATA / Mini PCI-Express Combo Slot (Full-size)
1 Mini PCI-Express Slot (Half-size)
5 SATA3 6Gb/s Connectors
2 USB Pin Header for up to 4 additional USB 3.1 Gen 1 Ports
1 USB Pin Header for up to 2 additional USB 2.0 Ports
4 Serial Headers 2.00mm pitch (4 * RS232)
1 24-bits Dual Channel LVDS Connector/Inverter
1 SIM Card Holder
1 Chassis Intrusion Jumper
1 AT/ATX Mode Jumper
1 10-pin GPIO Header
1 5-pin SMBUS Header
1 2-pin HDMI_SPDIF out Header
1 7-pin PS2 Keyboard Mouse Header
1 9-pin Audio Header
1 9-pin Front Panel Header
3 4-pin Fan Headers
1 24-pin ATX Power Connector
1 4-pin 12V ATX Power Connector
Market Segments Supported
√ Digital Security & Surveillance
√ Digital Signage
√ Gaming
√ Industrial Automation/Control
√ Medical
√ Retail (POS/Kiosk/ATM)
Environment
Operating Temperature : 0 ~ 60°C
Storage Temperature : -20 ~ 85°C
