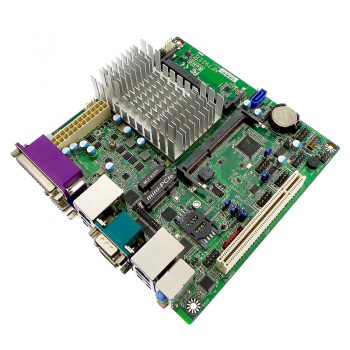

NF792I - 3160

Features
  • 1. Intel® Celeron N3160 SoC Processor (TDP 6W)
    2. 2 * 204-pin Dual-channel DDR3L 1600MHz SODIMM Up to 8 GB
    3. 2* 10/100/1000 Base-TX Ethernet Ports
    4. Support Intel AES NI and TPM (option) to secure customers’ data
    5. 4 * COM, 3 * USB3.0 & 5 * USB2.0, 1 * HDMI, 1 * VGA, 1 * M.2 (M-key, 2242/2280)
    6. 1 * PCI slot, 1* Mini PCIe slot (1* full size), 1 * SIM card holder

Overview

Form Factor

Dimensions

– Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)

 Processor System

CPU

– Intel® Braswell N3160 Processor

Core Number

– 4

Max Speed

– 2.24GHz

L2 Cache

– 2MB

Chipset

– SoC

BIOS

– AMI Flash ROM

 Expansion Slot

PCI

– 1

Mini-PCIe

– 1 (full size)

mSATA

– 0

PCIe

– 0

M.2

– 1 (M Key 2242/2260)

SIM Card Holder

– 1

 Memory

Technology

– Dual CH DDR3L 1600MHz SDRAM

Max.

– 8GB

Socket

– 2 * SO-DIMM

 Graphics

Controller

– Intel® HD Graphics

VRAM

– Shared Memory

VGA

– 1

LVDS

– 1 (Max Resolution : 1920×1080@60Hz)

eDP 1.3

– 0

HDMI 1.4

– 1 (Max Resolution : 3840×2160@30Hz)

MultiDisplay

– Triple Displays

 Ethernet

Ethernet

– 10/100/1000 Mbps

Controller

– 2 * Intel i211AT Gigabit LAN

Connector

– 2 * RJ 45

 Audio

CODEC

– HD Audio : Realtek ALC662VD

Channel

– Line-In, Line-Out, MIC

 SATA

Max Data Transfer Rate

– 1 * SATAIII (6.0Gb/s)

 Rear I/O

VGA

– 1

HDMI

– 1

Ethernet

– 2

USB

– 3 * USB 3.0 & 1 * USB 2.0

Audio

– 1 (Line-in, Line-out, MIC)

Serial / Parallel

– 2 / 1 (COM1: RS232/422/485)

PS2

– 0

DC-input

– 0

 Internal Connector

USB

– 4 * USB 2.0

PS/2

– 1

LVDS / inverter

– 1

HDMI

– 0

Serial

– 2

SATA

– 1 * SATAIII (6.0Gb/s)

mPCIe

– 1 (full size)

mSATA

– 0

M.2

– 1 (M key 2242/2260)

GPIO

– 1 (8 bit)

Chassis intrusion

– 1

Audio Header

– 1

SMBUS/ I2C

– 1

AT mode

– 1

TPM Header

– 1 (on board option)

SIM Card Holder

– 1

 Watchdog Timer

Output

– From Super I/O to drag RESETCON#

Interval

– 256 segments (10sec ~ 255min)

 Power Requirements

Input PWR

– ATX power in

Power On

AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

 Certifications

Certifications

– CE, FCC, LVD, RoHS, REACH

 Environment

Temperature

– Operating: 0°C – 60°C

– Storage: -20°C – 85°C

 Warranty

Warranty

– 2 Years Limited Warranty

  * Specifications subject to change without notice, not responsible for typographical errors. Does not include HDD or OS.

 Accessories

             Part Number

                                                Description

 NF792I-3160 M/B

G03-NF792I-F

 IPC NF792I User’s Manual

G02-DVD28-A2-WF

 CD Driver

G01-SATA3-BL-1F

 SATAIII cable

F04-MB-055-F

 NF792I I/O Shield
