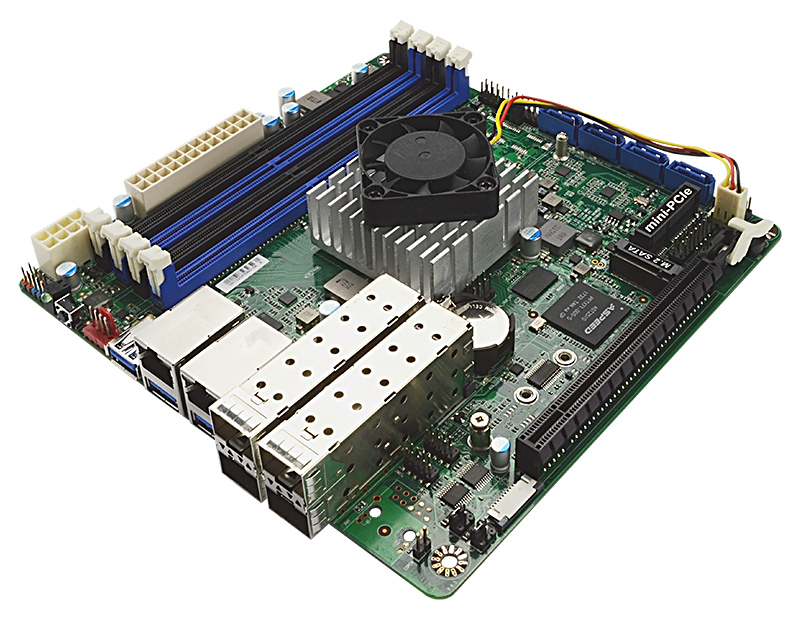

| Model Name |
NF699 |
| Part Number |
JNF699-C3758 |
| Form Factor |
Mini-ITX (170 x 170mm) |
| Processor |
Intel® C3758 SoC, 2.20 GHz, 8-Core 8-Thread, 25W TDP (Formerly Denverton) |
| Memory |
4 x 288-pin DIMM supporting Dual Channel DDR4-2133/2400/2666
Supports RDIMM REG/ECC up to 256GB Total or
Supports UDIMM UNBUFF/ECC up to 64GB Total or
Supports UDIMM UNBUFF/NON-ECC up to 64GB Total |
| Graphics |
Aspeed AST2510
PCIe VGA/2D Controller (1920 x 1200 @60Hz 32bpp) |
| Audio |
NA |
| LAN |
2 x Intel I210-AT GbE Ports
4 x Intel SFP+ 10GbE Fiber Ports, Supports Intel QuickAssist Technology |
| Storage |
4 x SATA3 6Gb/s
1 x M.2 (M-key, 2242/2260/2280, SATA only) |
| TPM |
Intel fTPM 2.0 (PTT) Trusted Computing Firmware
Onboard Nuvoton TPM 2.0 |

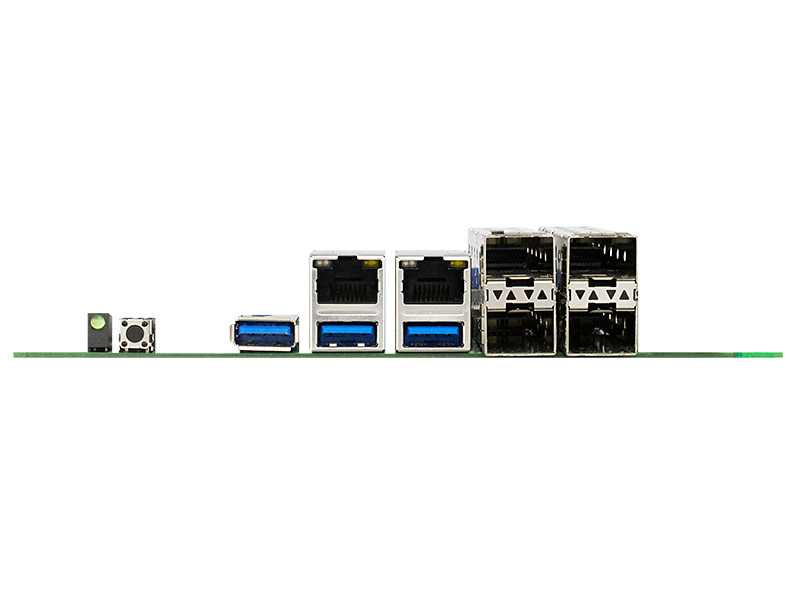

| Back Panel Connectors |
1 Power LED & Reset Button
3 USB 3.0
2 RJ45 Gigabit LAN Ports
4 SFP+ 10GbE Fiber Ports
|
| Onboard I/O Connectors |
1 PCI-E 3.0 x16 Slot (x8 Bandwidth)
1 Mini PCI-E Slot (Full-size)
1 M.2 Slot (M-key, 2242/2260/2280, SATA only)
4 SATA3 6Gb/s Connectors
2 Serial port Headers (RS232)
1 USB Pin Headers for up to 2 additional USB 2.0 Ports
1 VGA Header (1920 x 1200 @ 60 Hz)
1 Nuvoton TPM IC v2.0 onboard
1 Chassis Intrusion Jumper
1 AT/ATX Mode Jumper
1 8-bit GPIO Header
1 9-pin Front Panel Header
2 4-pin Fan Headers
1 24-pin ATX Power Connector
1 8-pin 12V ATX Power Connector |
| Market Segments Supported |
√ Digital Security & Surveillance
√ Networking Appliance & Firewall
√ Embedded Microserver |
| Environment |
Operating Temperature : 0 ~ 60°C
Storage Temperature : -20 ~ 85°C |
