Form Factor |
Dimensions |
- Mini-ITX (170 * 170mm) |
Processor System |
CPU |
- Intel LGA 1151 Socket Core i7 / i5 / i3 Pentium Processor |
Core Number |
- (by CPU) |
Max Speed |
- (by CPU) |
L2 Cache |
- (by CPU) |
Chipset |
- Intel Q170 Express chipset |
BIOS |
- AMI 128Mb Flash ROM |
Expansion Slot |
PCI |
- 0 |
Mini-PCIe |
- 2 (1* Half size & 1*Full size co-lay with mSATA) |
mSATA |
- 1 ( Full size , co-lay with mPCIe) |
PCIe |
- 1 x16 |
CFast Card Socket |
- 0 |
CF Card Socket |
- 0 |
Memory |
Technology |
- DDR4 2133MHz Dual CH |
Max. |
- 32GB |
Socket |
- 2 * SO-DIMM |
Graphics |
Controller |
- (by CPU) |
VRAM |
- Shared Memory |
VGA |
- 0 |
LVDS |
- 1 * Onboard 24-bits dual channel connector |
HDMI |
- 1 ( Hdmi2.0 , Max. Resolution: 4096*2160@60Hz) |
DVI-D |
- 1 ( Max. Resolution: 1920*1080 ) |
DisplayPort |
- 1 ( DP1.2, Max. Resolution: 4096*2304@60Hz ) |
MultiDisplay |
- Yes (Triple Display) |
Ethernet |
Ethernet |
- 10/100/1000 Mbps |
Controller |
- GbE LAN: INI219LM + i211AT |
Connector |
- 2* RJ 45 |
Audio |
CODEC |
- HD Audio : Realtek ALC662VD |
Channel |
- 6 Channel |
SATA |
Max Data Transfer Rate |
- 4 * SATAIII (6.0Gb/s) |
RAID |
- Yes(RAID 0,1,5,10) |

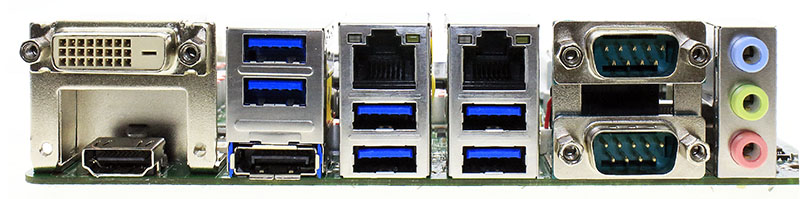

Rear I/O |
VGA |
- 0 |
DVI-D |
- 1 |
HDMI |
- 1 |
DisplayPort |
- 1 |
Ethernet |
- 2 |
USB |
- 6 * USB 3.0 |
Audio |
- 3 ( MIC , Line-out, Line-in ) |
Serial |
- 2 (COM1 support RS232/422/485 ) |
eSATA |
- 0 |
PS2 |
- 0 |
Internal Connector |
USB |
- 2 * USB 2.0 |
PS/2 |
- 1 |
LVDS / inverter |
- 1 |
VGA |
- 0 |
Serial |
- 2 ( COM 3 support RS232/422/485 ) |
SATA |
- 4 * SATAIII ( 6.0Gb/s ) |
mPCIe |
- 2 (1*Half size , 1*Full size co-lay with mSATA) |
Parallel |
- 0 |
mSATA |
- 1 ( Full size co-lay with mPCIe ) |
CIR |
- 0 |
GPIO 8-bit |
- 4in / 4out |
Chassis intrusion |
- 1 |
Audio Header |
- 1 |
TPM |
- 1 (Option) |
Watchdog Timer |
Output |
- From Super I/O to drag RESETCON# |
Interval |
- 256 segments, 0,1,2…255sec/min |
Power Requirements |
Input PWR |
- 24 pin/4 pin ATX PWR Connector |
Power On |
AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready |
Certifications |
Certifications |
- CE, FCC, RoHS, REACH |
Environment |
Temperature |
- Operating: 0°C – 60°C |
- Storage: -20°C – 85°C |
