Form Factor

Dimensions

- Thin Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)

 Processor System

CPU

- Intel® LGA 1151 Socket Core i7/i5/i3/Pentium Processor
- Supports Hyper-Threading Technology

Core Number

- (By CPU)

Max Speed

- (By CPU)

L2 Cache

- (By CPU)

Chipset

- Intel Q170 Express chipset

BIOS

- AMI 128Mb SMT Flash ROM

 Expansion Slot

Mini-PCIe

- 1 (full size)

mSATA

- 0

PCIe

- 1 (x4)

SIM

- 1

 Memory

Technology

- Dual Channel DDR3L 1600 MHz SDRAM

Max.

- 16GB

Socket

- 2 x SO-DIMM

 Graphics

Controller

- Intel® Gen9 Graphics supports DX 11/12, OGL4.3/4.4

VRAM

- Shared Memory

VGA

- 0

LVDS

- 0

HDMI

- 1 (Internal)

MultiDisplay

- No

 Ethernet

Ethernet

- 10/100/1000 Mbps

Controller

- GbE LAN: Intel i211AT * 7 & i219LM * 1

Connector

- 8 x RJ 45

 SATA

Max Data Transfer Rate

- 6 x SATAIII (6.0Gb/s)

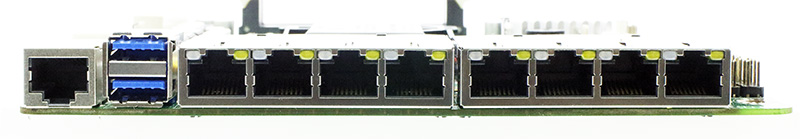

 Rear I/O

VGA

- 0

HDMI

- 0

Ethernet

- 8

USB

- 2 x USB 3.0

Audio

- 0

Serial

- 1 x RS-232

PS2

- 0

DC-input

- 0

 Internal Connector

USB

- 4 x USB 2.0

LVDS / inverter

- 0

Serial

- 0

SATA

- 6

mPCIe

- 1

mSATA

- 0

Chassis intrusion

- 1 (via 12pin header)

PS/2

- 1

Audio Header

- 0

 Watchdog Timer

Output

- From Super I/O to drag RESETCON#

Interval

- 256 segments, 0,1,2…255sec/min

 Power Requirements

Input PWR

- ATX PWR (4+24 pin)

Power On

AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Certifications

Certifications

- CE, FCC, RoHS, REACH

 Environment

Temperature

- Operating: 0°C – 60°C

- Storage: -20°C – 85°C
