Form Factor

Dimensions

- Pico (100 * 72 mm)

 Processor System

CPU

- Intel® Braswell - N3160 Processor

Core Number

- 4

Max Speed

- 2.24GHz

L2 Cache

- 2M

Chipset

- SoC

BIOS

- AMI 64MB flash ROM

 Expansion Slot

PCI

- 0

Mini-PCIe

- 1 (full size)

mSATA

- 0

PCIe

- 0

M.2

- 1 (M-key, 2242 SATA Only)

CF Card Socket

- 0

 Memory

Technology

- Single Channel DDR3L 1600MHz

Max.

- 4GB default

Socket

- 0 ( Memory Onboard )

 Graphics

Controller

- Intel® HD Graphics

VRAM

- Shared Memory

VGA

- 0

LVDS

- 1 * Onboard 24-bits Dual channel connector

HDMI

- 0

DVI-I

- 0

DisplayPort

- 1 (Max resolution 2560*1600@60Hz)

MultiDisplay

- Yes (Dual Display)

 Ethernet

Ethernet

- 10/100/1000 Mbps

Controller

- GbE LAN: Intel i211AT

Connector

- 1 * RJ 45

 SATA

Max Data Transfer Rate

- 1* SATAIII (6.0Gb/s)

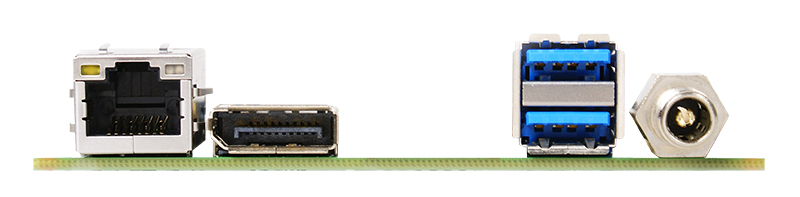

 Rear I/O

VGA

- 0

DVI-I

- 0

HDMI

- 0

DisplayPort

- 1

Ethernet

- 1

USB

- 2 (2* USB 3.0)

Audio

- 0

Serial

- 0

eSATA

- 0

PS2

- 0

DC-input

- 1

 Internal Connector

USB

- 2 ( 2 * USB 2.0 via 10pin header )

PS2

- 0

LVDS / inverter

- 1

VGA

- 0

Serial

- 2 ( 1 * RS232/422/485 with 5V/12V selectable header, 1 * RS232)

SATA

- 1 * SATAIII (6.0Gb/s)

mPCIe

- 1 (full size)

Parallel

- 0

M.2

- 1 (M-key, 2242 SATA Only)

CIR

- 0

GPIO 8-bit

- 0

Chassis intrusion

- 0

Audio Header

- 1 ( Line out & MIC )

 Watchdog Timer

Output

- From Super I/O to drag RESETCON#

Interval

- 256 segments, 0,1,2…255sec/min

 Power Requirements

Input PWR

- +12V DC-in (2-pin PWR Con)

Power On

AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Certifications

Certifications

- CE, FCC, RoHS, REACH

 Environment

Temperature

- Operating: 0°C - 40°C

- Storage: -20°C - 85°C
