Form Factor

Dimensions

- 3.5” SBC (148 * 102mm)

 Processor System

CPU

- Intel® Braswell N3160, 1.60Ghz

Core Number

- 4

Max Speed

- 2.24GHz

L2 Cache

- 2M

Chipset

- SoC

BIOS

- AMI 64Mb Flash ROM

 Expansion Slot

Mini-PCIe

- 1 (full size)

mSATA

- 0

PCIe

- 0

SIM card holder

- 0

 Memory

Technology

- On Board DDR3L 1600 MHz SDRAM

Max.

- 4GB

Socket

- 0

 Graphics

Controller

- Intel® HD Graphics

VRAM

- Shared Memory

VGA

- 0

DVI-D

- 0

LVDS

- 1 ( 24-bits Dual Channel)

DisplayPort

- 1 (Max.Resolution : 3840 * 2160@30Hz,2560 * 1600@60Hz)

HDMI

- 1 (Max.Resolution : 3840 * 2160@30Hz,2560 * 1600@60Hz)

MultiDisplay

- Yes ( Triple Independent Display )

 Ethernet

Ethernet

- 10/100/1000 Mbps

Controller

- Intel i211AT Gigabit LAN

Connector

- 2 * RJ 45

Audio

CODEC

- HD Audio : Realtek ALC662VD

Channel

- 6 Channel

 SATA

Max Data Transfer Rate

- 1 * SATAIII (6.0Gb/s)

RAID

- No

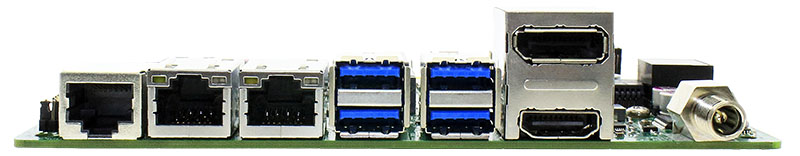

 Rear I/O

VGA

- 0

DVI-D

- 0

Display Port

- 1

HDMI

- 1

Ethernet

- 2

USB

- 4 * USB 3.0

Audio

- 0

Serial

- 1 (RJ-45 Type)

PS2

- 0

DC-input

- 1 (+9V~+36V Lockable)

 Internal Connector

VGA

- 0

USB

- 2 * USB 2.0

LVDS / inverter

- 1

Serial

- 5 (4 * RS232 , COM 2 support RS232/422/485)

SATA

- 1 (SATAIII 6.0Gb/s)

mPCIe

- 1 (full size)

mSATA

- 0

M.2

- 1 (M key-2242,SATA interface)

SIM card holder

- 0

Chassis intrusion

- 1

PS/2

- 0

GPIO

- 1 ( 4in/4 out)

SMBUS/ I2C

- 0

Audio Header

- 1 ( Line Out & MIC)

Audio Amplifier Header

- 0

AT mode

- 1

 Watchdog Timer

Output

- From Super I/O to drag RESETCON#

Interval

- 256 segments, 0,1,2…255sec/min

 Power Requirements

Input PWR

+9V~+36V Lockable DC in

Power On

AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Certifications

Certifications

- CE, FCC, RoHS, REACH

 Environment

Temperature

- Operating: 0°C – 60°C

- Storage: -20°C – 85°C
