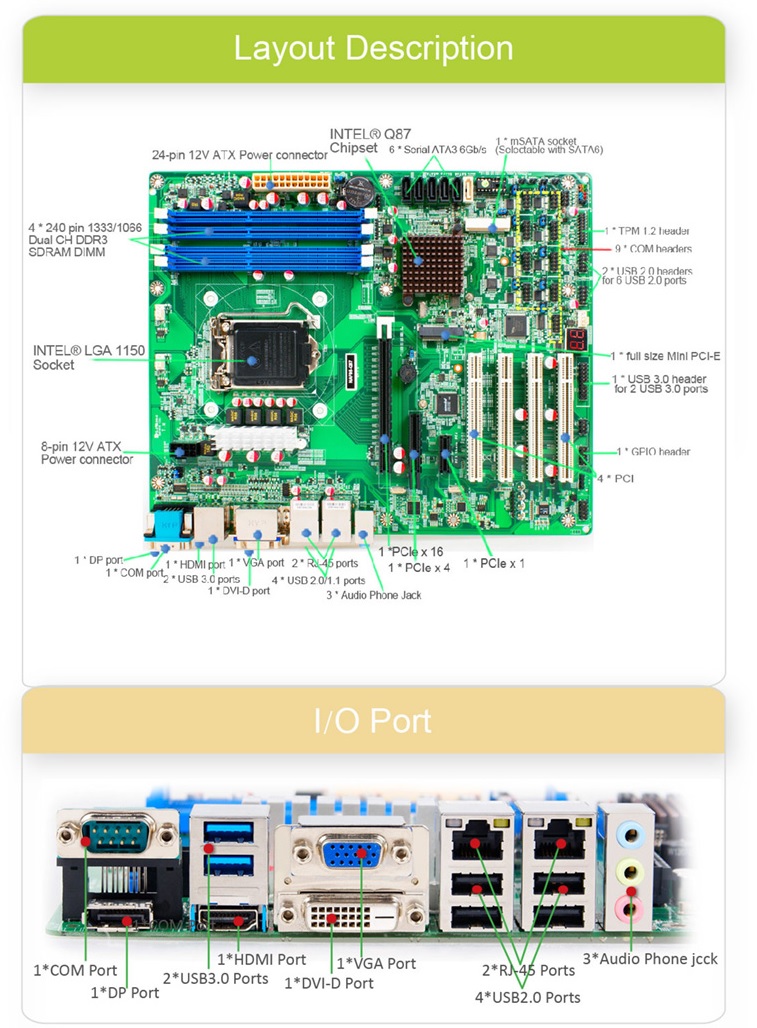

Click to see the enlarged view

Features
  • Intel® Q87 Express Chipset
  • Supports Intel LGA 1150 Socket Core™ i3, i5, i7 & Pentium Processors
  • Support 4 × 240 pin 8GB 1600/1333/1066 Dual CH DDR3 SDRAM DIMM Max. up to 32GB
  • Intel 82574L & I217LM Gigabit LAN
  • Intel Active Management Technology ( iAMT 9.0)
  • Support TPM 1.2 function
  • Support CPU Smart FAN
  • Supports ACPI S3 Function
  • Support Watch dog Technology
  • ATX form factor(305mm × 244mm)

Overview
Model JETWAY NAF95-Q87
CPU Intel® LGA 1150 Socket Core i7/i5/i3/Pentium Processor
Chipset Intel® Q87 Chipset
Memory 4 × 240 pin 8GB 1600/1333/1066 Dual CH DDR3 SDRAM DIMM Max. up to 32GB
Expansion Slots 1 × PCIe x16
4 × PCI, 1 × PCIe x4
1 × PCIe x1 (Selectable W/Mini PCI-E)
1 × full size Mini PCI-E
Storage 6 × Serial ATAIII 6Gb/s connectors support RAID 0, 1, 5, 10
1 × mSATA socket (Selectable with SATA6)
Audio Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN Intel 82574L & I217LM PCI-E Gigabit Ethernet LAN
USB Embedded 4 × USB 3.0 + 8 × USB 2.0/1.1
Special Features Support ACPI S3
Support CPU Smart FAN
Support Watch Dog
Rear Panel I / O 2 × USB 3.0 ports & 4 × USB 2.0/1.1 ports
2 × RJ-45 ports
1 × HDMI port
1 × DP port
1 × VGA port
1 × DVI-D port
1 × COM port (Support RS232/422/485)
3 × Audio Phone Jack
Internal I / O 1 × USB 3.0 header for 2 USB 3.0 ports & 2 × USB 2.0/1.1 headers for 4 USB 2.0 ports
CPU /NB / Chassis Fan connectors
1 × KB/MS headers
1 × GPIO header
9 × COM header ( COM1 & COM2 support RS232/422/485)
1 × TPM 1.2 header
1 × CIR header
1 × Chassis Intrusion header
1 × AUDIO header
1 × 24-pin & 8-pin 12V ATX Power connector
BIOS AMI EFI 64MB DIP Flash ROM
Form Factor ATX form factor(305mm × 244mm)
Functional ATM, Automation, Medical Equipment, Security, General Application, Gaming Machine, Transportation
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade
Storage within -20-85 centigrade
Optional Jeway dual LAN connector for Mini PCI-E socket (Model: JADMPEIDLA)
