JBC382F3E

Overview:

  • INTEL® Haswell / Broadwell SoC Processor
  • 2* DDR3L 1333/1600 up to 16GB
  • Support 1 * Serial ATAIII (6Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • 1 * 24 bits Dual Channel LVDS header
  • 1 * mPCIE
  • 1 * mSATA (share with mPCIE)
  • 2 * USB 2.0 + 4 * USB 3.0
  • 2 * HDMI Output
  • Supports 2 * Gigabit LAN
  • Support CPU Smart FAN
  • DC IN Jack 9~24V





Specification:


  • Dimension (W*H*D)
  • 185 * 60 * 142  mm
  • Construction
  • Aluminum housing
  • Colors
  • Black
  • MB model
  • JNF3E-4300U (3.5 “ SBC)
  • CPU & CHIP
  • INTEL® Haswell ULT i5-4300U or i5-5200U
  • BIOS
  • AMI 32MB SMT Flash ROM
  • Memory
  • 2 * SO-DIMM (DDR3-1333/1600Mhz_Max 16GB)
  • Storage Space
  • 1 * 2.5” SATA Device (Support SATA 6G / Max Height 9.5 mm)
  • 1 * m-SATA SSD Device (Mini PCI-E)
  • Display  Interface
  • 2 * HDMI
  • 1 * LVD-24 bits  ( Internal pin header)
  • Network
  • 2 * RJ45 (I211AT + I218LM Gigabit LAN)
  • WiFi (optional / JBC382F3EW-4300UB)
  • Audio
  • 1 * Audio

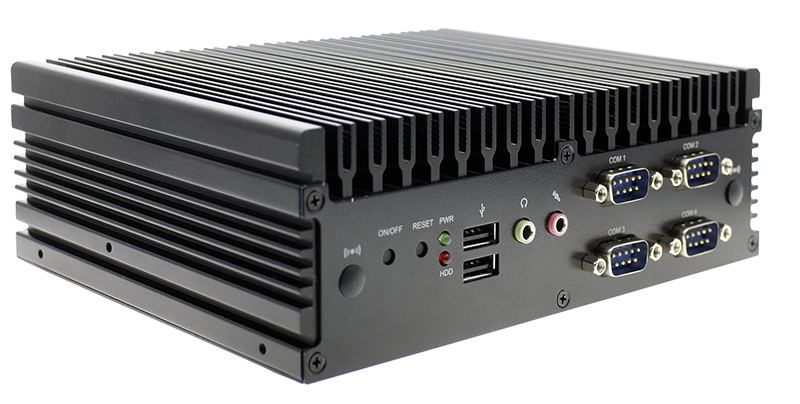

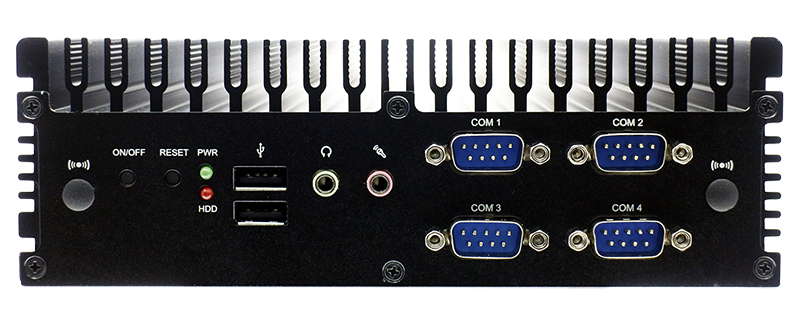

  • Front I/O Port
  • 2 * USB 2.0
  • 4 * COM

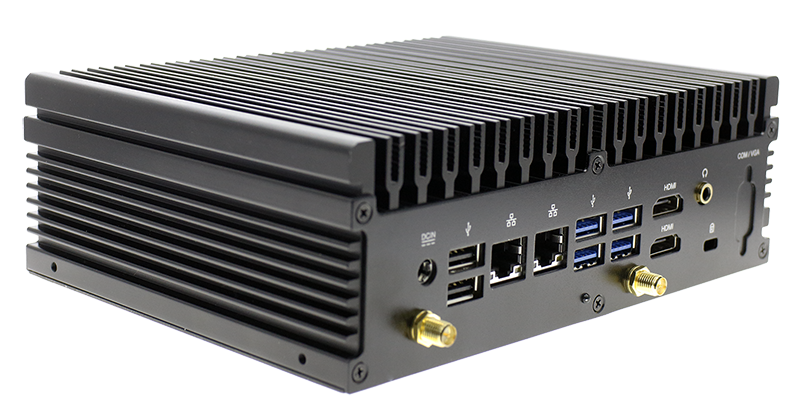

  • Rear I/O Port
  • 4 * USB 3.0
  • 2 * USB 2.0
  • Expansion Interface
  • 1 * Mini PCI-E (Half-size)
  • Power Source
  • DC-12V Jack input
  • Adapter : AC_90~240V / DC_12V_5A / 60W
  • Certification
  • EMC : CE , FCC
  • Safety : RoHS , ErP
  • Environment
  • Operating Temperature : 0 ~ 50℃
  • Storage Temperature : 0 ~ 60℃
  • Vibration During Operation : N/A
  • Shock During Operation : N/A
  • Mounting
  • Wall mounting Kits
  • Packing
  • Net Weight：2.2KG
  • Gross Weight：3.5KG
  • Color Box Dimension：250(W) x 118 (D) x 295 (H) mm
