| Model No |
JBC372F36-2600-B |

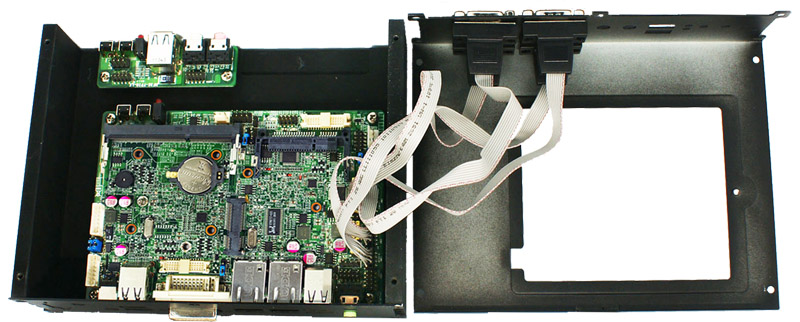

| Motherboard Specification |
| CPU |
Intel® Cedar Trail-M Processor N2600 (1.6GHz) |
| Chipset |
Intel® NM10 Express chipset |
| Memory |
1 × DDR3 800MHz Single CH SO-DIMM up to 4GB |
| Expansion Slots |
1 × Mini PCI-E |
| LAN |
2 × Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN |
| Audio |
Realtek ALC662 HD Audio CODEC with 4-Channel |
| Storage |
1 × Serial ATA2 3Gb/s connector
1 × CFast card socket |
| BIOS |
AMI 16MB SMT Flash ROM |
| Form Factor |
3.5” SBC (148mm × 102mm) |
| Barebone Specification |
| Product size |
180 (W) × 142 (D) × 48 (H) mm |
| Specs Devices |
1 × 2.5”HDD Drive Bay (Only support SATA 2.5”HDD) |
| Colors |
Black |

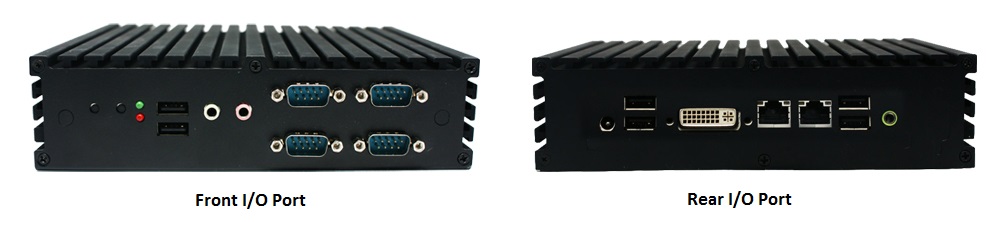

| Front I/O Port |
1 × Power button & 1 × Reset button
1 × Line-OUT & 1 × MIC jack
2 × USB 2.0 ports
4 × COM ports
2 × Antenna holes |

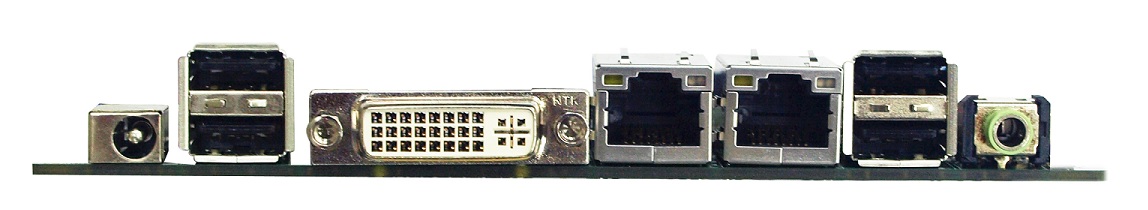

| Rear I/O Port |
4 × USB 2.0 ports 1 × 12V DC jack
2 × RJ-45 port(Gigabit LAN) 1 × Line-out port & 1 × DVI-I port
2 × Antenna holes 1 × VGA port Reserved |
| Power supply |
+12V DC-IN Power |
| Accessory |
60W AC-DC Adapter × 1 Power Cord × 1
CD × 1 Manual × 1
DVI-I to CRT Converter × 1 WI-FI antenna × 1（JBC372F36W –2600-B only）
Wall Mount Bracket × 2 LCD VESA Mount Bracket （optional）x 1 |
| Application |
Kiosk, Digital Signage, Gaming machine, Set Top Box, Thin Client, Car PC Application, Factory Automation & Embedded Fanless application |
| Packing |
Color Box Dimension：417(W) × 137(D) × 296(H)mm
Gross Weight：2.6KG Net Weight：2.1KG |
