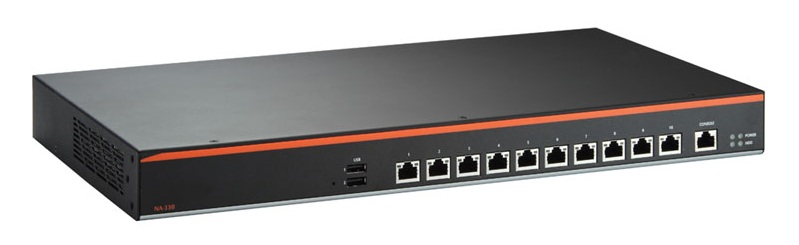

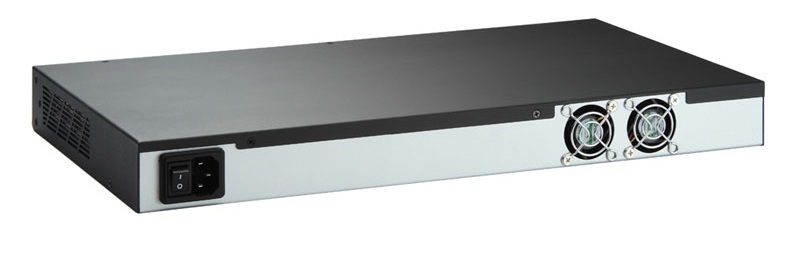

* Image for display purpose only

Overview

The NA-330-NB is a 1U rackmountable network security hardware platform for VPN, firewall and other network security applications. It supports low power Intel^®Atom™ processor D525 1.8 GHz with Intel^® ICH8M chipset and a DDR3-800 memory up to 4 GB. The wLAN ports are available in copper and fiber configurations to meet different requirements. For storing event data, the NA-330 utilizes two 2.5" SATA HDD or 3.5'' SATA HDD. It supports CompactFlash™ or optional SATA DoM. To ensure an uninterrupted network connection, the two-group bypass function acts automatically when the system is powered down or off.

Specification

Model No.	NA-330-NB
CPU	Atom™ D525 1.86 GHz with 1M L2 cache
Chipset	Intel^® ICH8M
Memory	2 × DDR3-800 (single channel) SO-DIMM max. up to 4 GB
BIOS	AMI 8Mbit PnP Flash BIOS with function of BIOS redirected to COM port
HDD Interface	Interface 2 × 2.5" SATA HDD (default) or 1 × 3.5'' SATA HDD (optional)
Network Interface	10 (RJ-type) × 10/100/1000Mbps Ethernet (Intel®82583V, 82572EI, 82541PI) or 8 (RJ-type) + 2 (SFP type, fiber) 10/100/1000Mbps Ethernet (Intel 82583V, 82572EI, 82541PI)
SSD	1 × SATA DOM or 1x CompactFlash™
I/O Interface	1 × RS-232 (RJ-type connector) 2 × USB connector, 10 × RJ-45 connector
Watchdog Timer	255 stepping for porting
USB	2 × USB 2.0 port on front side, rest are internal pin headers
Expansion Slot	1 × PCIe Mini Card slot (USB transaction bus)
Other Features	LAN bypass function through WDT and GPIO pin control
Power Supply	84W open frame
OS Compatibility	Linux Redhat Kernel 2.6
