JBC420U91







Overview:

    1. Slim NUC size Fanless system
    2. Intel® Bay Trail-M N2930 SoC Processor (1.83GHz, 7.5w)
    3. 1 * SO-DIMM slot (Max to 8GB)
    4. 1 * full size Mini PCIe slot for m-SATA Device
    5. Application: Panel PC,Commerce,Banking,Digital Signage,
      Gaming,Medical,POS/KIOSK,Industrial Automation,I.O.T,AIO





Specification:

  • Dimension (W*D*H)
  • 129 * 109 * 34  mm
  • Construction
  • Top cover & I/O plate –aluminum; Base- metal
  • Colors
  • Black / HBJC420U91-2930-B, HBJC420U91W-2930-B
  • MB model
  • JNU91-2930
  • CPU
  • INTEL® Bay Trail-M N2930 SoC Processor (1.83GHz, 7.5w)
  • BIOS
  • AMI UEFI
  • Memory
  • 1 * SO-DIMM slot (Max to 8GB)
  • Storage Space
  • 1 * full size Mini PCI-E slot for m-SATA Device
  • Display Interface
  • 2 * HDMI
  • Network
  • 1 * RJ45 (Giga LAN)
  • WiFi (HBJC420U91W-2930-B only)
  • Audio
  • 1 * Line out

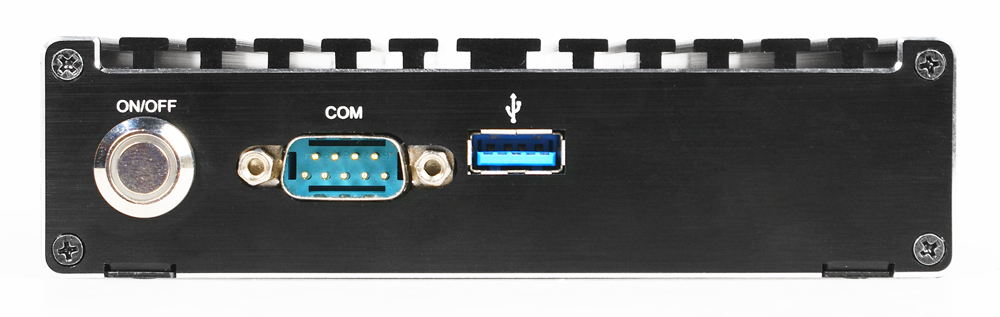

  • Front I/O Port
  • 1 * USB 3.0
  • 1 * COM

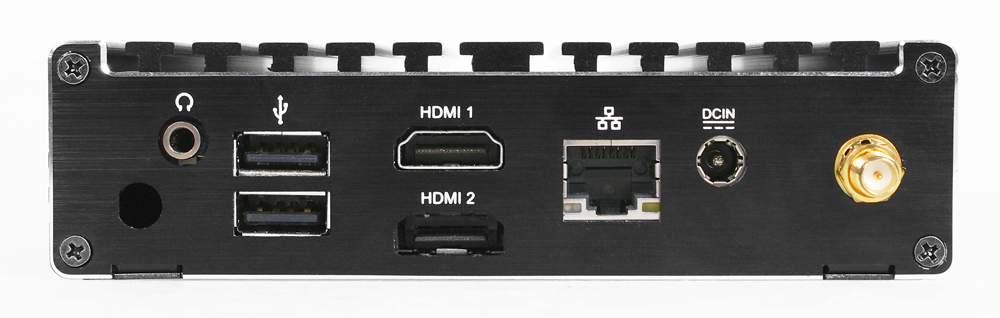

  • Rear I/O Port
  • 2 * USB 2.0,
  • 2 * HDMI
  • 1 * GigaLAN,
  • 1 * Line out
  • 1 * 12V DC-in
  • Expansion Slot
  • 1 * half size Mini PCI-E slot
  • Power Source
  • DC-12V Jack input
  • Adapter : AC_90~240V / DC_12V_3A/36W
  • Certification
  • EMC : CE , FCC
  • Safety : RoHS , ErP
  • Environment
  • Operating Temperature : -10°C~60°C with air flow (mSATA)
  • Storage Temperature : -20°C~80°C
  • Mounting Bracket
  • Multiple use bracket (Wall/VESA/DIN Rail)
  • Packing
  • Net Weight:0.9KG
  • Gross Weight:1.6KG
  • Color Box Dimension:158(W) x 167(D) x 123.6(H) mm
