JBC153NF9HG

Specifications:


  • Product Dimension
  • 430 (W) * 251 (D) * 43 (H) mm
  • Product Model
  • JBC153F9HB-2930-B
  • JBC153F9HB-2930G2
  • JBC153F9HB-2930G4
  • MB Model & Size
  • JNF9HB-2930 / MINI-ITX
  • JNF9HG-2930 / MINI-ITX
  • BIOS
  • AMI 64Mb Flash ROM
  • CPU
  • INTEL® Bay Trail – M/D/I Processor (2930)
  • Memory
  • SO-DIMM DDR3L 1333/1066MHz * 2 (Max 8GB)
  • Storage
  • 2.5” SATA HDD * 2 ,1* Full size mSATA(Share with SATA2)
  • Expansion
  • Full size Mini-PCIE * 2  (Support M-SATA*1)
  • SIM Card Slot * 1
  • Support TPM (option)
  • 2 x PCIex1
  • FAN
  • DC-12V / 4020 FAN * 3

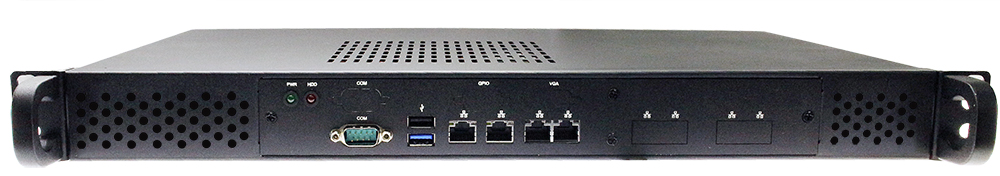

  • Front I/O Port
  • Power LED * 1 , HDD LED * 1
  • COM * 2 , GPIO * 1
  • VGA * 1
  • USB 3.0 * 1 ,USB 2.0 * 1
  • Giga LAN (Intel i211AT) * 4
  • Expansion 2 ports LAN PCI-E Card (JBC153F9HG-2930G2)
  • Expansion 4 ports LAN PCI-E Card (JBC153F9HG-2930G4)

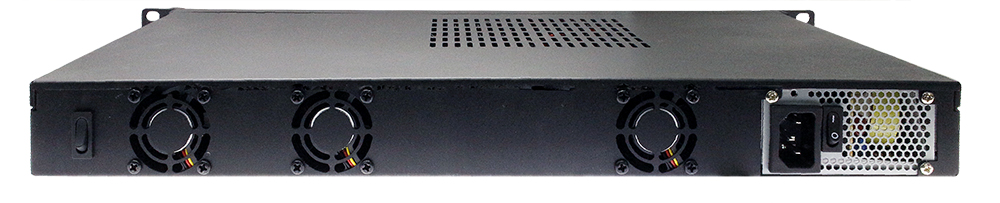

  • Rear I/O Port
  • AC input * 1
  • PW SW * 1
  • Power Source
  • 1U 200W FLEX POWER
  • AC 90~240V input
  • Accessory
  • AC Cable * 1 , Screw Package * 1
  • User Manual * 1 , CD * 1
  • Packing
  • Net Weight：4.2KG
  • Gross Weight：5KG
  • Color Box Dimension：560 (W) x 400 (D) x 380 (H) mm
  • Temperature
  • Operating within 0~60 centigrade
  • Storage within -10-70 centigrade
  • Certification
  • EMC : CE , FCC
  • Safety : RoHS , ErP
  • Applications
  • Networking
  • Surveillance
