- Top cover & I/O plate –aluminum; Base- metal
|
|
- Black / HBJC420U591(W)-3160-B
|
|
|
|
- INTEL® Braswell N3160 SoC Processor 1.6GHz (up to 2.24GHz)
|
|
|
|
- 1 * DDR3L SO-DIMM slot (Max to 8GB)
|
|
- 2 * USB 3.0 (type A)
- 1 * COM
|
|
- 2 * USB 3.0 (type A)
- 2 * HDMI (1.4b)
- 1 * DP (1.1a)
- 2 * RJ45 (Giga LAN)
- 2 * Wi-Fi (option)
- 1 * Line out/MIC Combo
- 1 * 12V DC-in jack
|
|
- 1 * half size Mini PCI-E slot
- 1 * full size Mini PCI-E slot for Mini PCI-E /m-SATA Device
- 1 * SIM card holder
|
|
- DC-12V Jack input
- Adapter : AC_90~240V / DC_12V / 40W
|
|
- EMC : CE , FCC
- Safety : RoHS , ErP
|
|
- Operating Temperature : -0°C~40°C
- Storage Temperature : -20°C~80°C
|
|
- Multiple use bracket (Wall/VESA/DIN Rail)
|
|
- Net Weight：0.9KG
- Gross Weight：1.3KG
- Color Box Dimension：158(W) x 167(D) x 123.6(H) mm
|
-3160-B_45D.jpg)

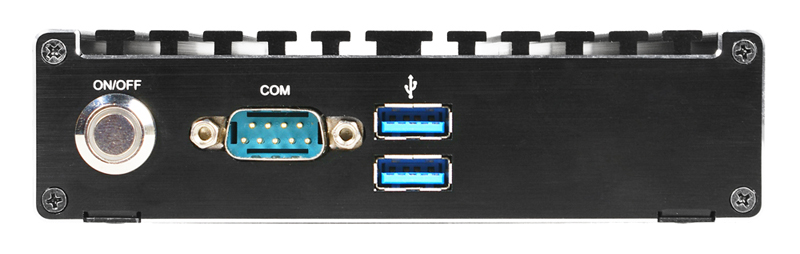

-3160-B_FRONT.jpg)

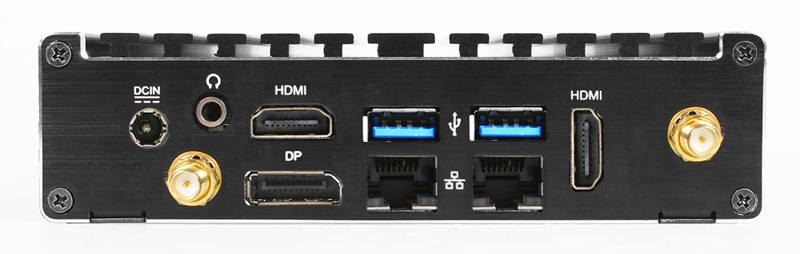

-3160-B_REAR.jpg)
