HBJC310U91

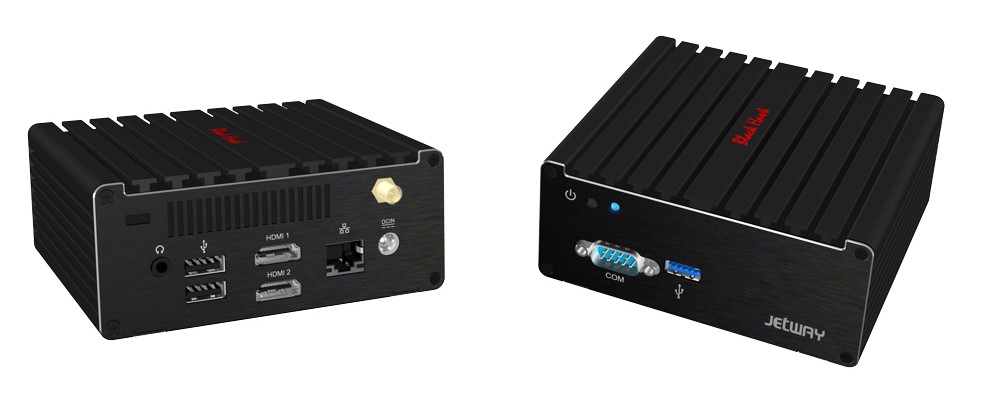

*Click the see the enlarged view.

Overview

  • Intel® Bay Trail-M N2930 SoC Processor
  • Support 1 × SO-DIMM slot (Max to 4GB)
  • Support 1 × 2.5 SATA HDD
  • 1 × full size Mini PCI-E slot for m-SATA Device
  • 1 × half size Mini PCI-E slot
  • Support USB3.0
  • Supports 1 × Gigabit LAN
  • Support CPU Smart FAN
Specification
Model HBJC310U91
Dimension (W*D*H) 116 × 110 × 65  mm (With 2.5” HDD Module)
Construction Aluminum housing
MB model JNU91-2930
CPU Intel® Bay Trail-M N2930 SoC Processor (1.83GHz, 7.5W TDP)
BIOS AMI UEFI
Memory 1 × SO-DIMM slot (Max to 4GB)
Storage Space 1 × full size Mini PCI-E slot for m-SATA Device 1 × 2.5 SATA HDD ( optional)
Display Interface 2 × HDMI
Network 1 × RJ45 (Giga LAN) WiFi
Audio 1 × Line out

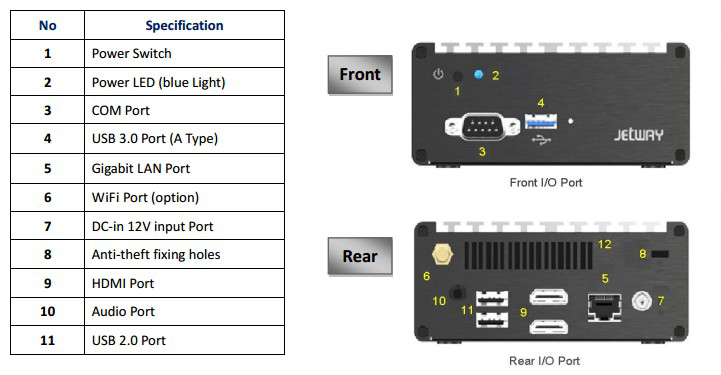

Front I/O Port 1 × USB 3.0 1 × COM
Rear I/O Port 2 × USB 2.0, 2 × HDMI, 1 × GigaLAN, 1 × Line out, 1 × 12V DC-in
Expansion Slot 1 × half size Mini PCI-E slot
Power Source DC-12V Jack input Adapter : AC_90~240V / DC_12V_3A/36W
Certification EMC : CE , FCC Safety : RoHS , ErP
Environment Operating Temperature : 0 ~ 35℃ Storage Temperature : 0 ~ 60℃ Vibration During Operation : N/A Shock During Operation : N/A
Mounting Wall mounting Kits
Packing Net Weight:0.9KG Gross Weight:1.6KG Color Box Dimension:180(W) × 190(D) × 92(H) mm
