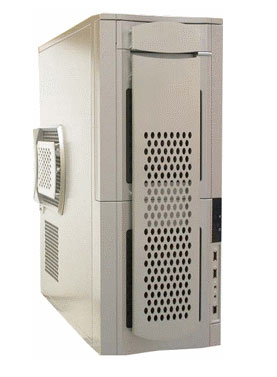

Model: Nitro602
ATX Prescott Ready-FMB2.0-CAG1.1
ATX, MicroATX
(W x D x H): 205mm x 488mm x 540mm |
Overview
-
Motherboard: ATX, MicroATX
-
Drive Bays: 5 x 5.25" exposed, 2 x 3.5" front accessible, 5 x 3.5" hidden
-
LEDs: Power, HD
-
Expansion slots: 7 full height slots
-
Front I/O: USB2.0 x 2, IEEE1394a x 1 and audio ports
-
Power Supply: PS/2 size(optional)
-
Dimension: 205mm(W) x 488mm(D) x 540mm(H)
-
Cooling system: 12cm ballbearing fan x 1(rear; temperature controlled), 12cm front fan x 1(optional)and FMB2.0 air duct
-
Lockable side panel, front cover for security
-
Materials: 1.0mm SECC/SGCC (chassis) and ABS/Aluminium(front coverl)
-
HDD vibration protection
|
Special features
-
Removable 3.5" HDD trays
-
Easy assembly 5.25" device sliding rails
-
Special design flip-open door for the top optical drive
-
Special air duct design to meet Intel
-
Prescott TA38 requirements. The air duct can be adjustable in all directions (patented)
-
Special front panel design, the front panel can slide along the side panel (patent pending)
-
Revolving front I/O (patent pending)
-
ATX Prescott ready-FMB2.0-CAG1.1 compliant
-
HDD vibration protection
-
Easy opening and lockable side panel
|
.gif)
| CASE HIGHLIGHTS |
 |
 |
| 1- Special front panel design, the front panel can slide along the sidepanel(patent pending) |
2- Thumb screws |
 |
 |
| 3- Easy opening and lockable sidepanel |
4- Removable 3.5" bays cage(drives not included) |
 |
 |
| 5- Special design Flip-open cover for optical devices |
6- Easy assembly 5.25" device sliding rails |
 |
 |
| 7- Revolving I/O connectors(patent pending) |
8- Removable 3.5" HDD trays with shock absorption |
 |
|
| 9- Prescott TA38 requirements. The air duct can be adjustable in all directions with optional cooling fan(Patented). |
|
|
