*Image for display purposes only. Click to see the enlarged view

Model: MINI-203B

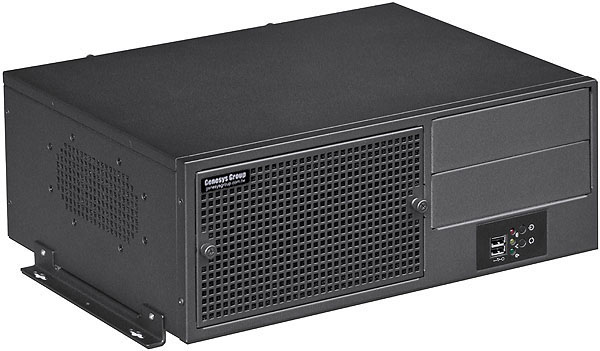

The features of this new Mini-ITX chassis are compliant with 4G LTE or high speed WiFi networks and cloud transmission as well as NAS storage application for enterprises and Soho purpose. It can support maximum 8 × 2.5" hotswap drives or 3 × 3.5" hotswap drives, and additionally two more 2.5" internal HDD installable inside. This chassis mechanism uses very durable and high end SECC 1.0mm thickness, and the optional wall mount bracket can be installed in harsh industrial environment very well. This chassis also designed with quick assembly and screwless air dust-proof shield to keep away from the dust into the system. Cooling system also equipped with two silent 80mmx25mm fans as well as anti-vibration function. Also it supports dual slot expansion card such as high end graphic card with this chassis.

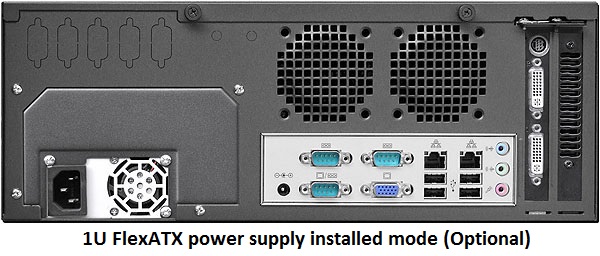

  • Drive bay (1U FlexATX power installed mode): 2 × 5.25" ODD, 2 × 2.5" HDD bay

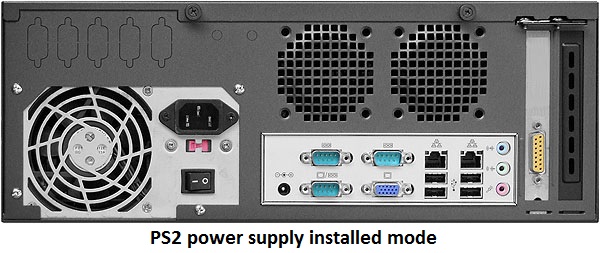

  • Drive bay (PS2 power installed mode): 1 × 5.25" ODD, 2 × 2.5" HDD bay

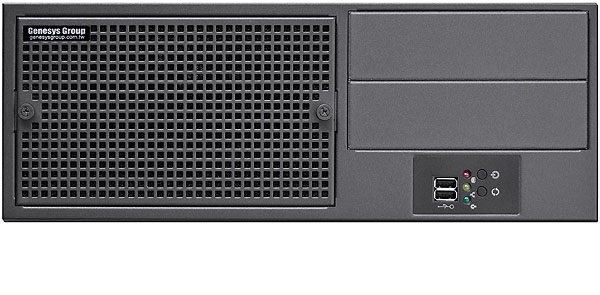

  • Equipped with two USB 2.0 ports at front bezel
  • Screwless top cover design for quick system installation
  • Screwless quick assembly fan with anti-vibration function
  • Screwless dust-proof air filter shield for quick maintenance
  • Side panel with dust-proof air filter design for dual slot high-end graphic card
  • SECC 1.0mm high grade sheet metal as durable mechanism
  • Equipped with two 80mm × 25mm silent fans (fan part# D80SM-12C)
  • Support Mini-ITX MB mounting at 6.7" × 6.7" (170mm × 170mm)
  • Dual slot high-end graphic card compatible (max. card depth at 250mm)
  • Standard paint: black
  • Chassis dimension: 370mm × 135mm × 264.50mm (W × H × D)
  • Power Supply: PS/2 or 1U 250W PSU
  • Accessory Pack: M3 countersunk × 8pcs, M4 countersunk × 4pcs, M5 fan screw × 8pcs,
  • M3 round head × 12pcs, #6 round head × 8pcs
  • Package: NW 3.65KG, GW 4.65KG, 1.35 CUFT (45 × 37 × 23cm, one box packed)
