Model: MINI-202B

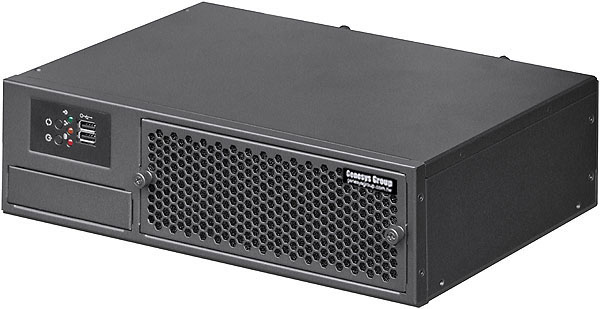

The features of this new Mini-ITX chassis are compliant with 4G LTE or high speed WiFi networks and cloud transmission as well as NAS storage application for enterprises and Soho purpose. It can support maximum two 2.5" hotswap drives and one more 3.5" hard drive with this chassis. This chassis mechanism uses very durable and high end SECC 1.0mm thickness, and the optional wall mount bracket can be installed in harsh industrial environment very well. This chassis also designed with screwless air dust-proof shield to keep away from the dust into the system. Cooling system also equipped with one silent 80mmx25mm fan and one more 80mmx25mm fan and 40mmx20mm fan as option. It supports one expansion card via riser card as well.

  • Drive bay: 2 x 3.5" HDD bay (or one 3.5" FDD & one 2.5" HDD)
  • Equipped with two USB 2.0 ports at front bezel
  • Screwless top cover design for quick system installation
  • Screwless dust-proof air filter shield for quick maintenance

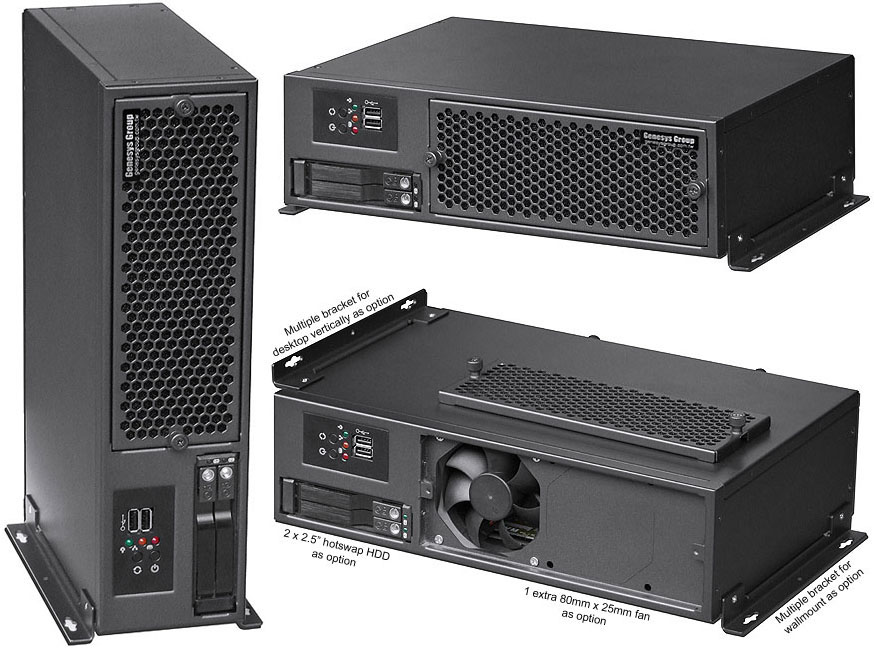

  • Multi-functional wallmount bracket for vertical desktop or wallmount platform (option)
  • SECC 1.0mm high grade sheet metal as durable mechanism
  • Equipped with one 80mmx25mm silent fan (fan part# D80SM-12C)

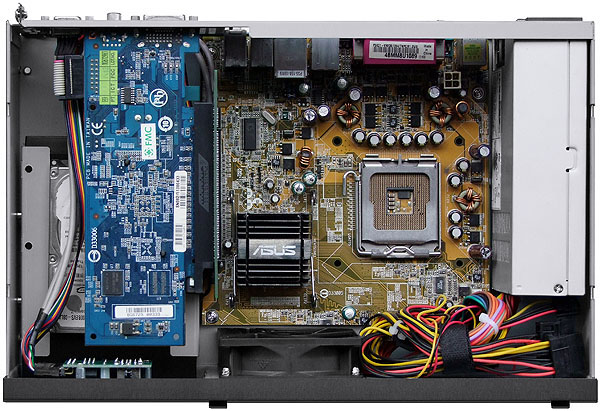

  • Support Mini-ITX MB mounting at 6.7" x 6.7" (170mm x 170mm)
  • One expansion card compatible (max. card depth at 185mm via optional riser card)
  • Standard paint: black
  • Chassis dimension: 328mm x 88.7mm x 220.9mm (W x H x D)
  • PSU: 1U FlexATX 250W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)
  • Accessory Pack: M4 countersunk x 4, M3 round head with washer x 4, #6 round head x 4, #6 countersunk x 8, M3 countersunk x 8, M4 fan screw x 4, M5 fan screw x 8
  • Package: NW 2.33KG, GW 2.74KG, 0.8 CUFT (41x29x19cm, one box packed)
