• Model No.: CS557
  Case Dimensions (mm): 62(H) × 190(W) × 196(D)
  Color: Black
  Main Board Size (mm): 170(W) × 170(D) ;
  Also suitable for Intel DH61AG, DQ77KB Motherboard

  Device Support:

  CD/DVD Device: N/A
  HDD Device: 2.5
  PCI Slots: N/A
  VESA Holes: 100 × 100

  Power Supply:

  DC Type: 60W or 80W (Optional)
  For Power on Motherboard: 90W AC Adapter (19V, 4.74A)

  Function:

  Application POS, Kiosk, Digital Signage, MediaBox

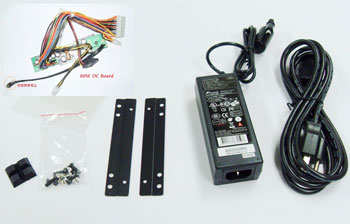

  Optional:

  AC Adapter
  DC Type Power Kit: 60W, 80Wor 120W. 19V
  System Fan: 40 × 40 Side × 4 or 60 × 60 Top × 2
