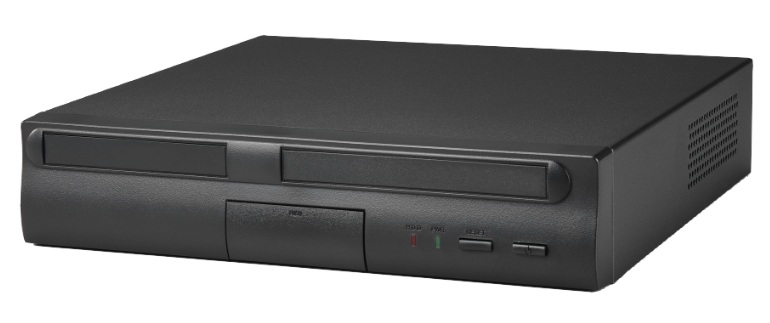

- Model No.: CS 2799
- Case dimensions(mm): 63.5(H) × 288(D) × 295(W)
- Main board:
Mini-ITX Form Factor (170 × 170)
- Drive space: slim type DVD/CD × 1, slim type floppy × 1, normal type 3,5" × 1
- LED Display: Power & HDD
- USB port × 2 + Mic × 1 + Audio × 1 + IEEE1394 × 1
- Expansion slot:1x or 2x 32-bit PCI through a riser card
- Cooling fan: 1 × 6cm fan
| PSU Model No.: |
PDB080R |
| Input DC Voltage Require: |
11.4V ~ 12.6V |
| Maximum Output: |
80.20W |
| Operating Temperature: |
0 ~ 45 |
| Maximum Output ( W ): |
| Output Voltage ( V ) |
5VSB |
+3.3V |
+5V |
+12V |
-12V |
| Output Current ( A ) |
1.50 |
5.00 |
8.00 |
2.50 |
0.10 |
| Power Output ( W ) |
7.50 |
16.50 |
25.00 |
30.00 |
1.20 |
|
