Products



*Image for display purposes only. Click to see the enlarged view.

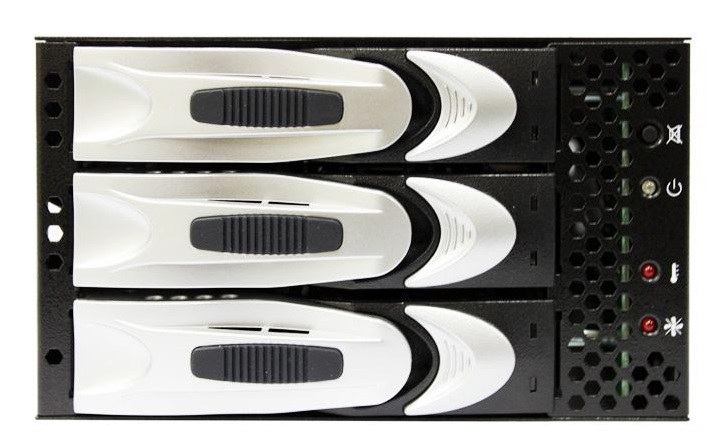

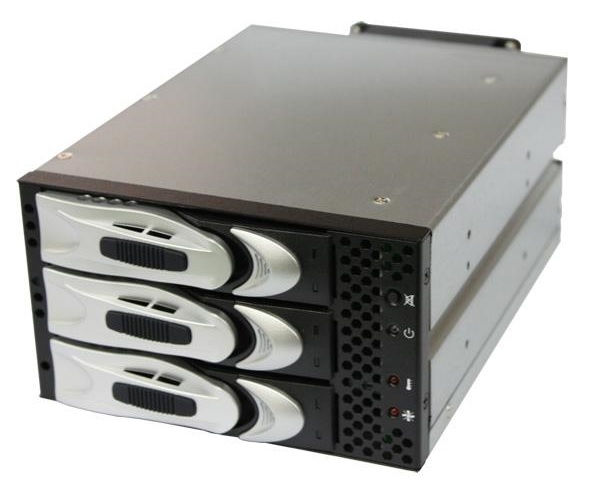

Model: BR - 23 SAS/SATA
Converts 2 x 5.25" drive bays to 3 x 3.5 " SAS/SATA hot swap drive bays ...
Specifications
  • Materials: Heavy-duty cold-rolled steel
  • Dimensions: 146.05 x 240.03 x 84.836mm or 5.75" x 9.45" x 3.34"

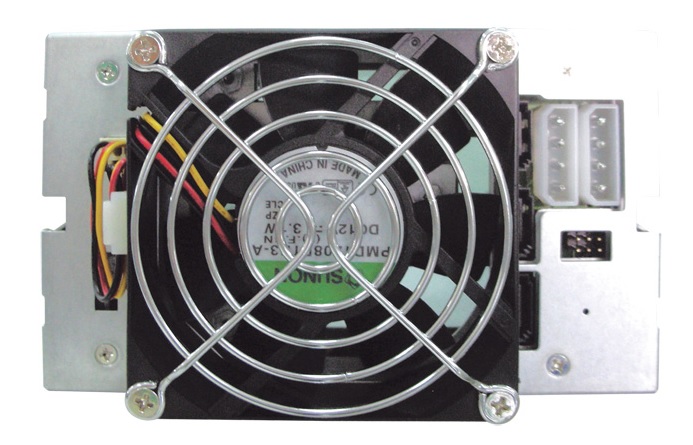

  • Cooling: 1 x 60x25mm fan
  • Drive Bay: 3.5" hot-swap x 3
  • Package Dimension (W x D x H): 300mm x 240mm x 180mm
  • Sleek, unique and user-friendly HDD tray design
  • 3x 4-pin backplane power connectors
  • Sliding door with foam for superior cooling performance
  • 2x 4-pin fan power connectors
  • Plastic rail for hard drive noise & vibration damping
  • EMI shielding gasket for EMI grounding
  • Innovative airflow design for optimized coolings
