MB Model |
– JNF632E-7X00 / 3.5” SBC
– Core Number : i5-7200U |
BIOS |
– AMI 128Mb SMT Flash ROM |
CPU/Chipset |
– Intel® Skylake/Kabylake U Processor (TDP 15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload. |
Memory |
– 2 * SO-DIMM slots DDR4-2133MHz up to 32GB |
Storage |
– 1 * 2.5” SATA3 6Gb/s internal drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1 * Mini-PCIe (full size, shared with mSATA) |
Network |
– 2 * Intel® GbE
– 1 * half-size Mini-PCIe slot (for WiFi expansion) |

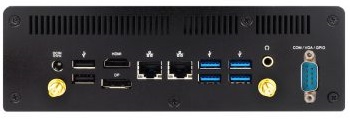

Rear Panel I/O |
– 2 * USB 2.0 , 4 * USB 3.0
– 1 * HDMI (Max. resolution:4096 x 2160@24Hz)
– 1 * DP (Max. resolution:4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Line-out
– 1 * GPIO (Optional)
– 2 * Antenna holes (Optional)
– 1 * DC-In jack |

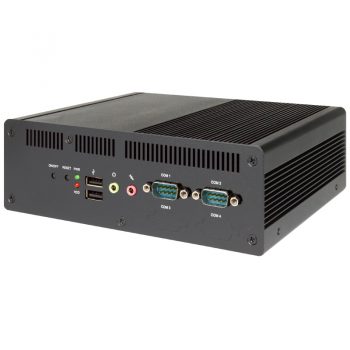

Front Panel I/O |
– 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB 2.0 ports
– 1 * Line-out, 1 * MIC-in
– 4 * COM |
Power Source |
– FSP DC Adapter / DC12V-5A-60W / LV6
– AC 90~240V input |
Compliance |
– CE, FCC, LVD, RoHS |
Safety |
– Vibration test: N.C
– Shock test: N.C |
Temperature |
– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C |
Dimensions |
– 193 (W) x 142.4 (D) x 62 (H) mm |
Packing |
– Net Weight: 2.2KG
– Gross Weight: 3.2KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm |
OS Support |
– Skylake CPU support Win7, Win8, Win10.
– HBFDF632(W)-7200-B (Kabylake CPU) only support Win10. |
Warranty |
– 2 Year limited warranty |
