- 185 (W) * 165 (D) * 48 (H) mm
|
|

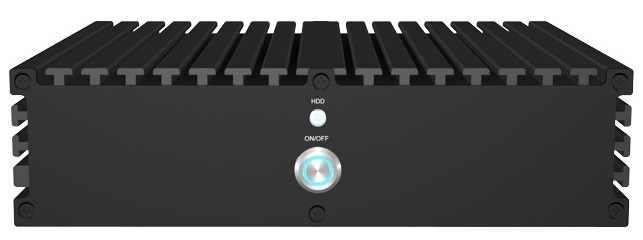

- JBC390F541XX19B ( no Expansion Card )

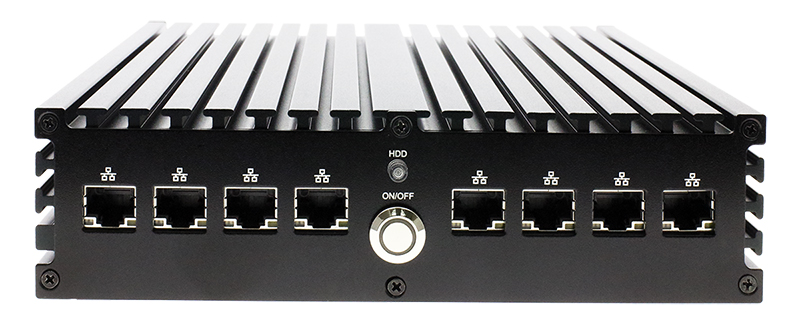

- JBC390F541AA19B ( 8 LAN )

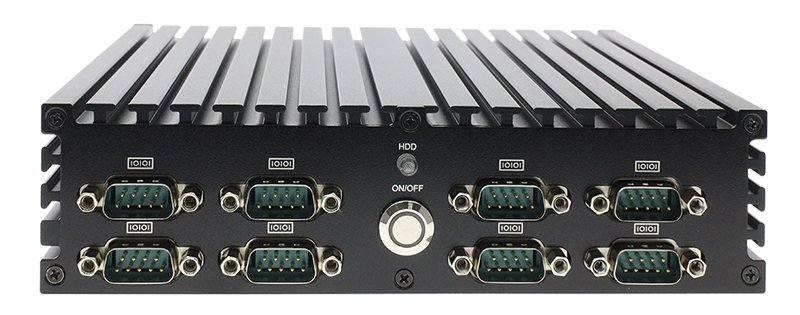

- JBC390F541CC19B ( 8 COM )

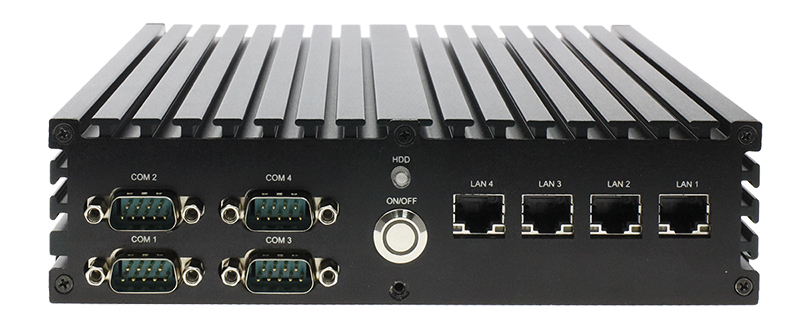

- JBC390F541CA19B ( 4 COM + 4 LAN)
|
|
|
|
|
|
- INTEL® Bay Trail-D J1900 SoC Processor
|
|
- One CH SO-DIMM / DDR3L 1333/1066MHz (Max. up to 8GB )
|
|
- 2.5” SATA Device (SATA-22P) * 1
- m-SATA SSD * 1
|
|
|
|
- Power SW * 1
- HDD LED * 1
- COM
- Intel Giga LAN
|
|
- USB3.0 * 1 , USB2.0 * 3
- VGA * 1 , HDMI * 1
- Giga LAN * 2
- MIC * 1 , Line out * 1
- COM * 1
- DC-in Jack * 1
- Reset SW * 1
- WiFi Port * 2 (optional)
|
|
- AC 90~240V / 60W / DC-12V Adapter / Lock
|
|
- Mini PCI-E * 2 (Full-size)
|
|
- Net Weight：2.4KG
- Gross Weight：3.4KG
- Color Box Dimension： 250 (W) x 118 (D) x 295 (H) mm
|
|
- Operating within 0~60 centigrade
- Storage within -10-70 centigrade
|
|
- EMC : CE , FCC
- Safety : RoHS , ErP
|
|
- Industrial Control System
- Networking Server System
|
