JBC375F533(W)-19B4

Specifications:

  • Dimension (W*H*D)
  • 185 * 142 * 48  mm
  • Construction
  • Aluminum housing
  • Colors
  • Black
  • MB model
  • JNF533-1900 (3.5 “ SBC)
  • CPU
  • INTEL® Bay Trail Celeron J1900 , TDP : 10W
  • BIOS
  • AMI 64Mb Flash ROM
  • Memory
  • 1 * 4GB DDR3L 1333Mhz (on board)
  • Storage Space
  • 1 * 2.5” SATA Device (Max Height 9.5 mm)
  • 1 * m-SATA SSD Device (Mini PCI-E)
  • Display  Interface
  • 1 * VGA  ( Internal pin header)
  • Network
  • 4 * RJ45 (Giga Lan)
  • WiFi (optional / JBC375F533W-1900-B4)
  • Front I/O Port
  • 2 * USB 2.0
  • 1 * COM

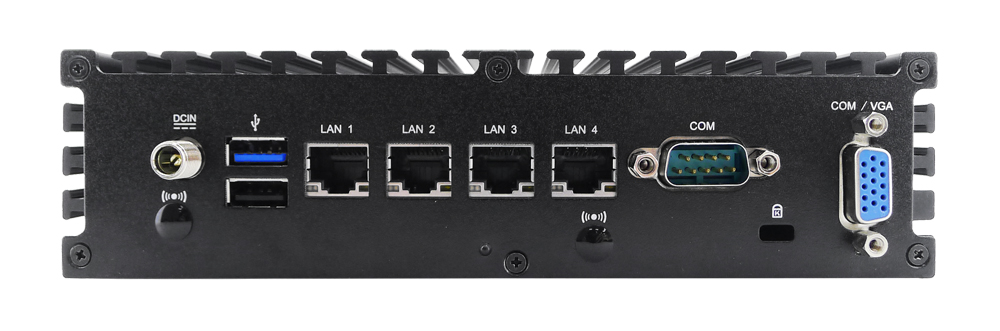

  • Rear I/O Port
  • 1 * USB 2.0
  • 1 * USB 3.0
  • 4 * RJ45
  • 1 * VGA
  • 1 * COM
  • Expansion Interface
  • Mini PCI-E # 1 : Full-size (for mini PCIE module)
  • Mini PCI-E # 2 : Full-size (for mini PCIE module)
  • Mini PCI-E # 3 : Full-size (for M-SATA SSD)
  • Power Source
  • DC 12V Jack input (Lock Type)
  • Adapter : AC_90~240V / DC_12V_5A / 60W
  • Certification
  • EMC : CE , FCC
  • Safety : RoHS , ErP
  • Environment
  • Operating Temperature : 0 ~ 40℃
  • Storage Temperature : -10 ~ 60℃
  • Mounting
  • Wall mounting Kits
  • Packing
  • Net Weight：1.4KG
  • Gross Weight：2.7KG
  • Color Box Dimension：250(W) x 118 (D) x 295 (H) mm
